LTC3630AHMSE#TRPBF - Analog Devices

Description: Buck Switching Regulator IC Positive or Negative Adjustable (Programmable) 0.8V (1.8V, 3.3V, 5V) 1 Output 500mA 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad

Download LTC3630AHMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

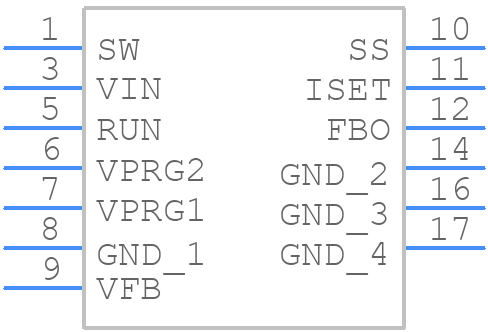

LTC3630AHMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3630AHMSE#TRPBF - Analog Devices PCB footprint - Other - Other - MSE Package Variation: MSE16 (12) 16-Lead Plastic MSOP with 4 Pins Removed Exposed Die Pad_2025-2.1
click to zoom

LTC3630AHMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC3630AHMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16/12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1871

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 76V; ALSO OPERATES AT 3.3V AND 5V OUPUT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.4 A

  • Output Voltage-Max:

    76 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12/16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    250 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3630AHMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3630 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • The choice of input and output capacitors for the LTC3630 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The maximum ambient temperature range for the LTC3630 is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C. It's recommended to ensure that the device is operated within the specified temperature range to ensure reliable operation and to prevent overheating.
  • The efficiency of the LTC3630 can be calculated using the formula: Efficiency (%) = (Output Power / Input Power) x 100. The output power can be calculated by measuring the output voltage and current, while the input power can be calculated by measuring the input voltage and current. The efficiency of the device can also be estimated using the datasheet curves and graphs.
  • The recommended input voltage range for the LTC3630 is 2.7V to 5.5V. However, the device can operate with an input voltage as low as 2.5V and as high as 6V. It's recommended to ensure that the input voltage is within the specified range to ensure reliable operation and to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3630AHMSE#TRPBF Overview

Use the download button to access the LTC3630AHMSE#TRPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers
