LTC3634MPUFD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3634MPUFD#PBF - DC-DC REGULATOR, BUCK, , QFN-28

Download LTC3634MPUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

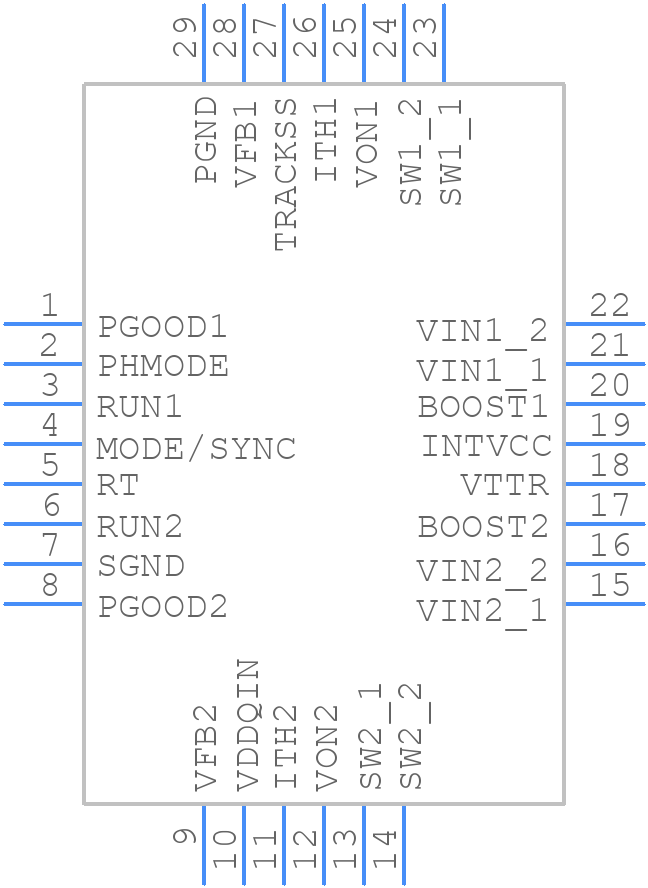

LTC3634MPUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3634MPUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD (28-Lead QFN)
click to zoom
3D Models
LTC3634MPUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD (28-Lead QFN)
click to zoom

LTC3634MPUFD#PBF Details

  • Manufacturer Part Number:

    LTC3634MPUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 4 MM, LEAD FREE, PLASTIC, MO-220WXXX-X, QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 3V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    1.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC3634MPUFD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3634 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The output capacitor should be selected based on the output voltage and current requirements. A 10uF to 47uF ceramic capacitor is a good starting point. Make sure to follow the capacitor selection guidelines in the datasheet.
  • The LTC3634 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LTC3634 is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and assembly techniques to ensure the device is securely attached to the PCB. Additionally, consider using a conformal coating to protect the device from moisture and vibration.
  • Start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are properly selected. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any unusual waveforms or noise on the input or output. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3634MPUFD#PBF Overview

Use the download button to access the LTC3634MPUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers
