LTC3701EGN#PBF - Analog Devices

Description: Linear Technology LTC3701EGN#PBF, DC-DC Controller Dual, 2A, 10 V Step-Down, 750 kHz, 16-Pin, SSOP

Download LTC3701EGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

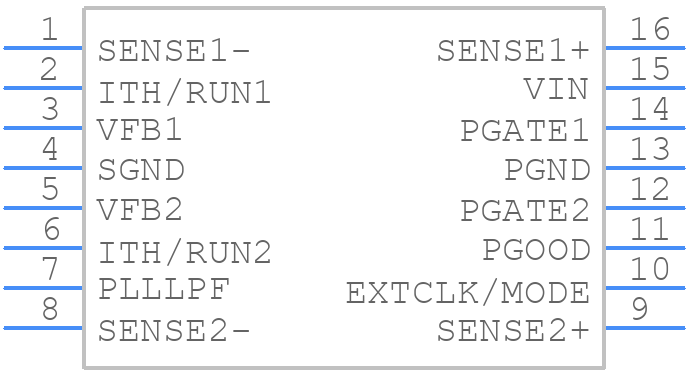

LTC3701EGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3701EGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.150)_1
click to zoom
3D Models
LTC3701EGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow 0.150)_1
click to zoom

LTC3701EGN#PBF Details

  • Manufacturer Part Number:

    LTC3701EGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    4.2 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Supply Current-Max (Isup):

    0.78 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    890 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3701EGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3701EGN involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The compensation network for the LTC3701EGN involves selecting the right values for the resistors and capacitors. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application and desired performance. It's also important to consider the output capacitor's ESR and the input capacitor's ESL when designing the compensation network.
  • The maximum input voltage that the LTC3701EGN can handle is 36V. Exceeding this voltage can damage the IC. It's recommended to add input voltage protection, such as a voltage regulator or a TVS diode, to prevent damage from voltage spikes or surges.
  • To ensure the LTC3701EGN operates within its safe operating area (SOA), it's essential to monitor the input voltage, output current, and junction temperature. The IC should be operated within the recommended operating conditions, and the thermal design should be optimized to prevent overheating.
  • A good thermal design for the LTC3701EGN involves using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the IC. The PCB should be designed to dissipate heat efficiently, and the IC should be mounted on a thermally conductive material.
