LTC3703IGN-5#TRPBF - Analog Devices

Description: 60V Synchronous Switching Regulator Controller

Download LTC3703IGN-5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

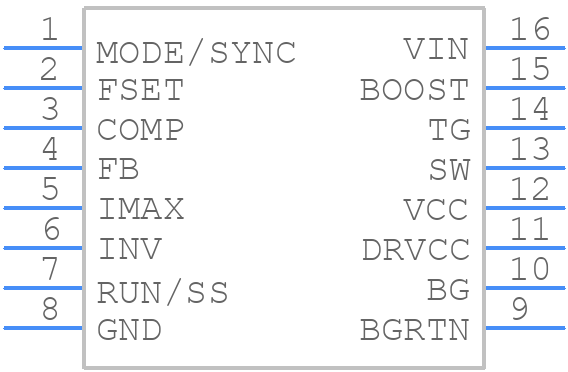

LTC3703IGN-5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

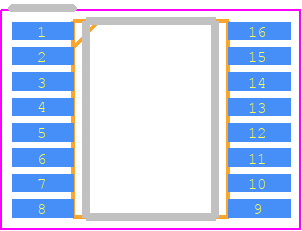

LTC3703IGN-5#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC3703IGN-5#TRPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC3703IGN-5#TRPBF Details

  • Manufacturer Part Number:

    LTC3703IGN-5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.1 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3703IGN-5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3703IGN-5 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to minimize noise and interference.
  • The choice of input and output capacitors for the LTC3703IGN-5 depends on the specific application and the desired performance. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The LTC3703IGN-5 can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and to ensure proper thermal management to prevent overheating.
  • Yes, the LTC3703IGN-5 is suitable for use in high-reliability and automotive applications. The device is built with high-reliability materials and is designed to meet the requirements of the automotive industry. However, it's recommended to consult with Analog Devices Inc. for specific guidance on using the device in these applications and to ensure that the device meets the required specifications and standards.
  • Troubleshooting issues with the LTC3703IGN-5 involves identifying the symptoms of the problem, checking the device's operating conditions, and verifying that the device is properly configured. Common issues include incorrect input or output voltage, oscillations, or overheating. It's recommended to consult the datasheet and application notes, and to use debugging tools such as oscilloscopes and logic analyzers to identify the root cause of the problem.
