LTC3707EGN#TRPBF - Analog Devices

Description: High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator

Download LTC3707EGN#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

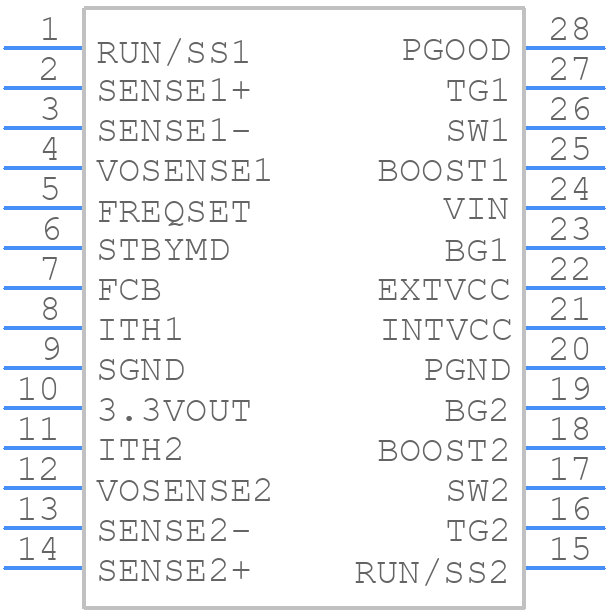

LTC3707EGN#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3707EGN#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC3707EGN#TRPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC3707EGN#TRPBF Details

  • Manufacturer Part Number:

    LTC3707EGN#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.893 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.45 V

  • Output Voltage-Min:

    3.2 V

  • Output Voltage-Nom:

    3.35 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    360 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3707EGN#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3707EGN involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • Optimizing the compensation network involves selecting the right values for the compensation components (e.g., RCOMP, CCOMP) based on the specific application requirements, such as output voltage, output current, and switching frequency. A good starting point is to use the recommended values in the datasheet and then fine-tune them through simulation and experimentation.
  • The maximum ambient temperature range for the LTC3707EGN is -40°C to 125°C, but the device can operate up to 150°C with derating. It's essential to ensure that the device operates within the recommended temperature range to maintain its performance and reliability.
  • Yes, the LTC3707EGN is suitable for high-reliability and automotive applications due to its high-quality manufacturing process, robust design, and compliance with relevant industry standards (e.g., AEC-Q100). However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • Troubleshooting common issues with the LTC3707EGN involves identifying the root cause of the problem, which can be related to PCB layout, component selection, or configuration. A good approach is to use a systematic debugging methodology, such as checking the power supply, output voltage, and switching frequency, and then using simulation tools or oscilloscope measurements to identify the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3707EGN#TRPBF Overview

Use the download button to access the LTC3707EGN#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC37, or try a keyword search, such as Switching Regulator or Controllers
