LTC3709EG#PBF - Analog Devices

Description: Switching Voltage Regulators Fast, 2-Phase Controller w/ Tracking

Download LTC3709EG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

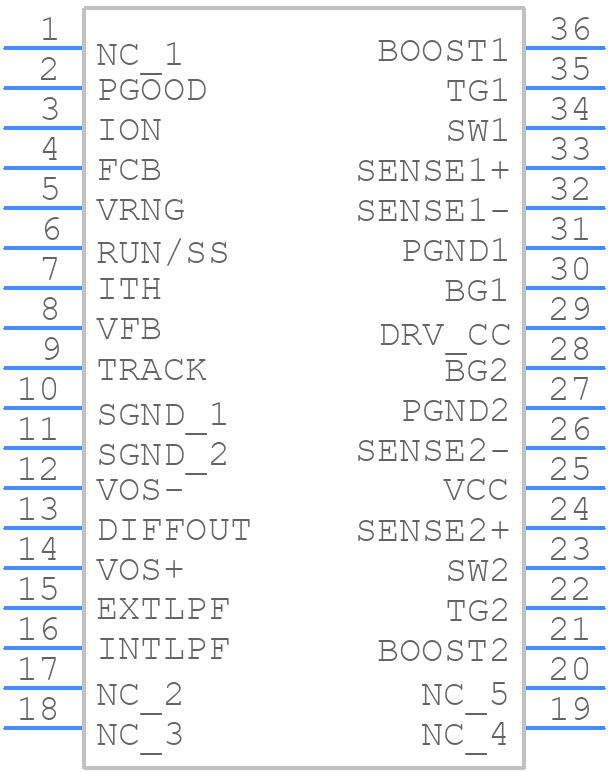

Symbol
LTC3709EG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3709EG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SSOP36
click to zoom
3D Models
LTC3709EG#PBF - Analog Devices - 3D model - Small Outline Packages - SSOP36
click to zoom

LTC3709EG#PBF Details

  • Manufacturer Part Number:

    LTC3709EG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC3709EG#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC3709EG#PBF can be found in the application note AN113, 'LTC3709 Switching Regulator Layout and Component Placement Guidelines'. This application note provides detailed guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The selection of the right inductor for the LTC3709EG#PBF depends on several factors such as the input voltage, output voltage, output current, and switching frequency. Analog Devices provides an inductor selection guide in the datasheet, which can be used to select a suitable inductor. Additionally, the LTpowerCAD design tool can be used to simulate and optimize the inductor selection.
  • The maximum ambient temperature that the LTC3709EG#PBF can operate in is 85°C. However, the device can operate at higher temperatures with derating. The thermal derating curve can be found in the datasheet, which provides information on the maximum junction temperature and power dissipation at different ambient temperatures.
  • The voltage drop across the sense resistor in the LTC3709EG#PBF can be compensated for by using a sense resistor with a low temperature coefficient and by placing the sense resistor close to the output capacitor. Additionally, the datasheet provides a formula to calculate the sense resistor value based on the output voltage and current, which takes into account the voltage drop across the sense resistor.
  • The SYNC pin on the LTC3709EG#PBF is used to synchronize the switching frequency of multiple LTC3709EG#PBF devices in a multi-phase configuration. This allows for improved thermal management and reduced electromagnetic interference (EMI). The SYNC pin can also be used to synchronize the switching frequency with an external clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3709EG#PBF Overview

Use the download button to access the LTC3709EG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC37, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
