LTC3722IGN-1#PBF - Analog Devices

Description: Synchronous Dual Mode Phase Modulated Full Bridge Controllers –40°C to 85°C,3.8V ~ 10.25V

Download LTC3722IGN-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

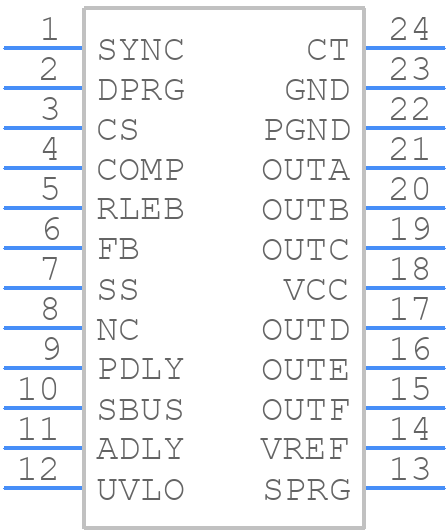

LTC3722IGN-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3722IGN-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 24-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC3722IGN-1#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 24-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC3722IGN-1#PBF Details

  • Manufacturer Part Number:

    LTC3722IGN-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1641 (GN24)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    6.3 V

  • Input Voltage-Nom:

    9.5 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    8 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    285 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3722IGN-1#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3722IGN-1#PBF is 30V, but it's recommended to operate within the specified input voltage range of 4.5V to 28V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LTC3722IGN-1#PBF can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and to prevent overheating.
  • To synchronize the switching frequency of multiple LTC3722IGN-1#PBF devices, connect the SYNC pin of each device to a common clock signal. This ensures that all devices switch at the same frequency, reducing electromagnetic interference (EMI) and improving overall system performance.
  • The PG (Power Good) pin on the LTC3722IGN-1#PBF is an open-drain output that indicates when the output voltage is within regulation. It can be used to monitor the output voltage and provide a signal to other components in the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3722IGN-1#PBF Overview

Use the download button to access the LTC3722IGN-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC37, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
