LTC3765IMSE#TRPBF - Analog Devices

Description: Active Clamp Forward Controller and Gate Driver

Download LTC3765IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

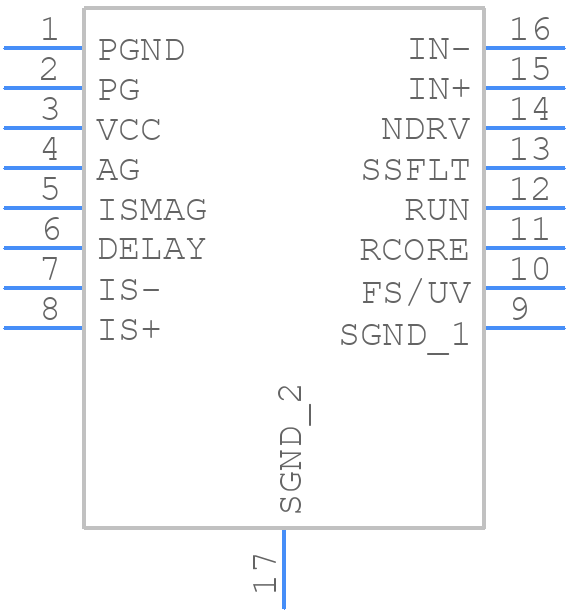

LTC3765IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3765IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LTC3765IMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC3765IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    14.5 V

  • Supply Voltage-Min (Vsup):

    7.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3765IMSE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To minimize EMI, it's recommended to keep the high-frequency switching nodes (e.g. SW, VIN, and VOUT) away from sensitive analog nodes, use a solid ground plane, and keep the layout symmetrical. Additionally, use a common-mode choke and a shielded inductor to reduce radiated emissions.
  • The recommended operating frequency range for the LTC3765IMSE is between 100kHz to 1MHz. Operating outside of this range may affect the converter's efficiency and stability.
  • To select the right inductor, consider the maximum current rating, inductance value, and core material. A good starting point is to use an inductor with a current rating of at least 1.5 times the maximum output current, and an inductance value between 1uH to 10uH. Ferrite or iron powder cores are recommended for their high saturation current and low core loss.
  • The SS pin is the soft-start pin, which allows the user to control the startup sequence of the converter. By applying a voltage ramp to the SS pin, the output voltage can be slowly ramped up to the desired level, reducing inrush current and stress on the input supply.
