LTC3784EGN#PBF - Analog Devices

Description: Boost Regulator Positive Output Step-Up DC-DC Controller IC 28-SSOP

Download LTC3784EGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

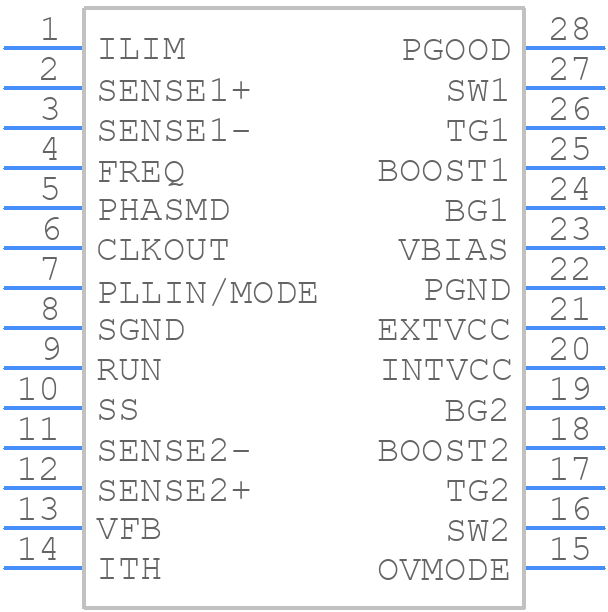

Symbol
LTC3784EGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3784EGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC3784EGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 28-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC3784EGN#PBF Details

  • Manufacturer Part Number:

    LTC3784EGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1641 (GN28)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.893 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.899 mm

LTC3784EGN#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3784 is 36V, but it's recommended to keep it below 32V for reliable operation.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet, and then adjust based on the specific application requirements.
  • The SYNC pin allows the user to synchronize the switching frequency of the LTC3784 with an external clock signal. This can be useful in noise-sensitive applications or when multiple converters need to be synchronized.
  • Ensure good thermal design, including a heat sink if necessary, and monitor the junction temperature using the thermal monitoring pin (THM). Take corrective action if the temperature exceeds the recommended range.
  • Keep the high-current paths short and wide, use a solid ground plane, and ensure good thermal conductivity to the heat sink. Avoid thermal gradients and hot spots, and use thermal vias to dissipate heat.
