LTC3806EDE#PBF - Analog Devices

Description: 25V 8V 50mA Flyback Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 12-Lead (4mm × 3mm) Plastic DFN

Download LTC3806EDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

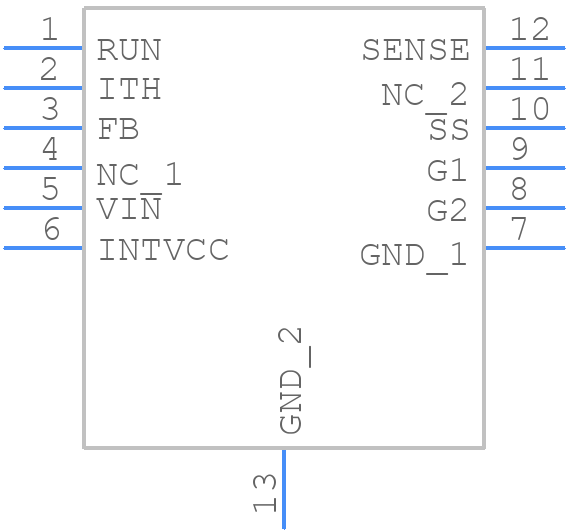

Symbol
LTC3806EDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3806EDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - UE/DE Package 12-Lead Plastic DFN (4mm × 3mm)_2025-1
click to zoom
3D Models
LTC3806EDE#PBF - Analog Devices - 3D model - Small Outline No-lead - UE/DE Package 12-Lead Plastic DFN (4mm × 3mm)_2025-1
click to zoom

LTC3806EDE#PBF Details

  • Manufacturer Part Number:

    LTC3806EDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    290 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3806EDE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3806EDE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane is recommended. Refer to the application note AN113 for more details.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. The output capacitor should have a low ESR and be rated for the maximum output voltage. A minimum capacitance of 10uF is recommended for both input and output. X5R or X7R ceramic capacitors are good options. Refer to the datasheet for more details.
  • The maximum ambient temperature for the LTC3806EDE is 85°C. However, the junction temperature should not exceed 125°C. Refer to the datasheet for more details on thermal considerations.
  • Yes, the LTC3806EDE is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to MIL-STD-883. Refer to the datasheet for more details on the screening process.
  • Troubleshooting issues with the LTC3806EDE involves checking the input and output voltages, ensuring proper PCB layout, and verifying the component values. Refer to the application note AN113 for more details on troubleshooting techniques.
