LTC3829EFEPBF - Analog Devices

Description: Optional Nonlinear Control for Fast Response n ±0.75%, 0.6V Reference Accuracy n PWM, Stage Shedding™ or Burst Mode® Operation n High Efficiency: Up to 95% n RSENSE or DCR Current Sensing n Programmable DCR Temperature Compensation n Phase-Lockable Fixed Frequency: 250kHz to 770kHz n True Remote Sense Differential Amplifier n Programmable Active Voltage Positioning (AVP) n Triple N-Channel MOSFET Synchronous Drive n Wide VIN Range: 4.5V to 38V Operation n VOUT Range: 0.6V to 5V without Diffamp n

Download LTC3829EFEPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

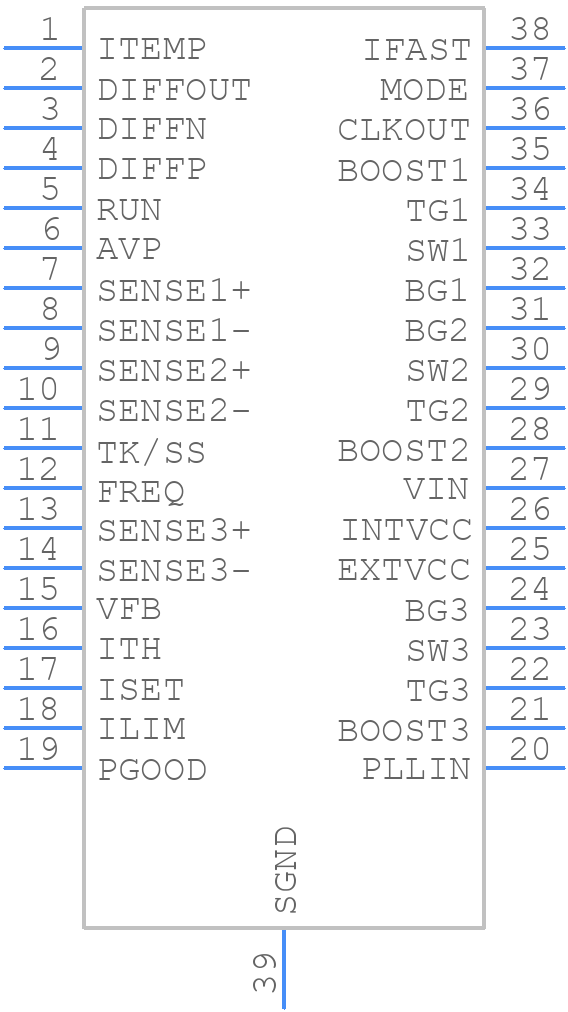

LTC3829EFEPBF - Analog Devices - PCB symbol
