LTC3855EFETRPBF - Analog Devices

Description: Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise n High Efficiency: Up to 95% n RSENSE or DCR Current Sensing n Programmable DCR Temperature Compensation n ±0.75% 0.6V Output Voltage Accuracy n Phase-Lockable Fixed Frequency 250kHz to 770kHz n True Remote Sensing Differential Amplifier n Dual N-Channel MOSFET Synchronous Drive n Wide VIN Range: 4.5V to 38V n VOUT Range: 0.6V to 12.5V without Differential Amplifier n VOUT Range: 0.6V to 3.3V with Diffe

Download LTC3855EFETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

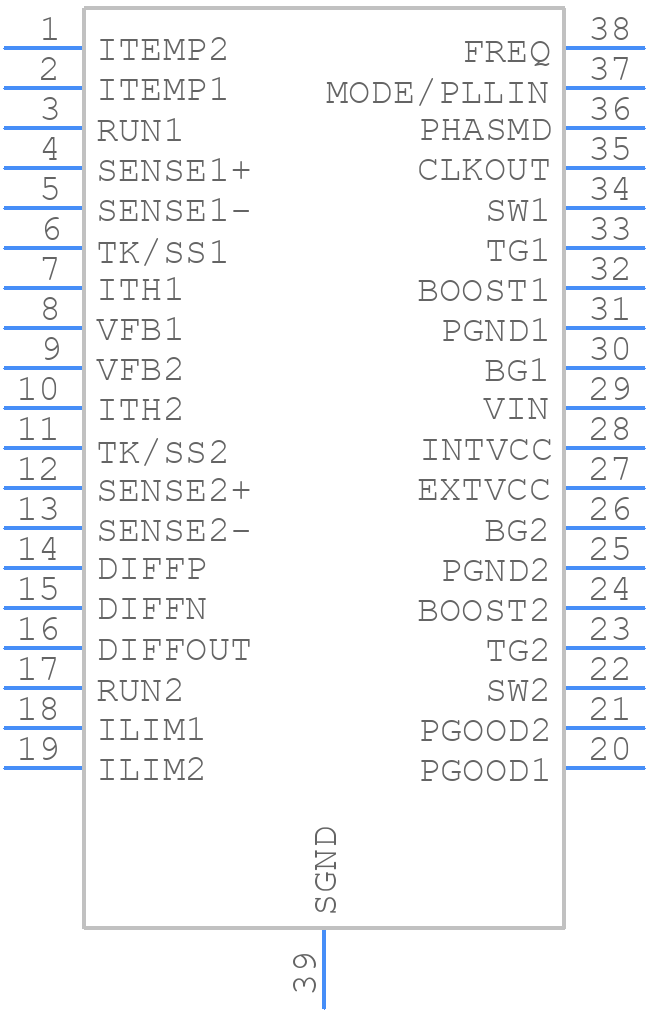

LTC3855EFETRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3855EFETRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom
3D Models
LTC3855EFETRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom

LTC3855EFETRPBF Details

  • Manufacturer Part Number:

    LTC3855EFETRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC3855EFETRPBF Overview

Use the download button to access the LTC3855EFETRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
