LTC3862EFE-1#TRPBF - Analog Devices

Description: Multi-Phase Current Mode Step-Up DC/DC Controller

Download LTC3862EFE-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

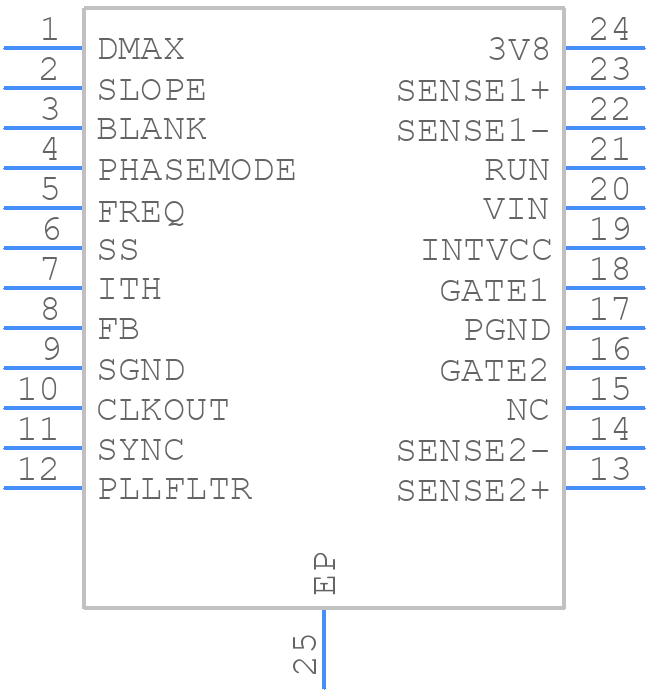

Symbol
LTC3862EFE-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

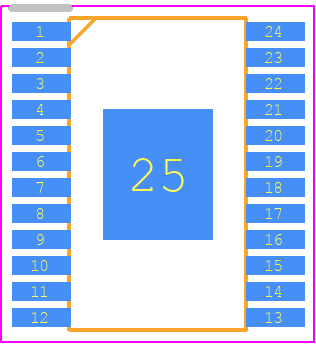

LTC3862EFE-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B)
click to zoom
3D Models
LTC3862EFE-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B)
click to zoom

LTC3862EFE-1#TRPBF Details

  • Manufacturer Part Number:

    LTC3862EFE-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1771

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    10 VOLT LDO REGULATOR OUTPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC3862EFE-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3862EFE-1#TRPBF involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value of at least 22uF. The capacitor selection should also consider the voltage rating, ripple current rating, and temperature rating.
  • The LTC3862EFE-1#TRPBF can operate in an ambient temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to use a heat sink or thermal management system to keep the device temperature within the specified range.
  • The output voltage of the LTC3862EFE-1#TRPBF can be configured by selecting the appropriate resistors for the feedback network. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage. Additionally, the device has a voltage adjust pin that can be used to fine-tune the output voltage.
  • The LTC3862EFE-1#TRPBF can deliver up to 2A of output current, but the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the datasheet for the maximum output current rating under specific operating conditions.
