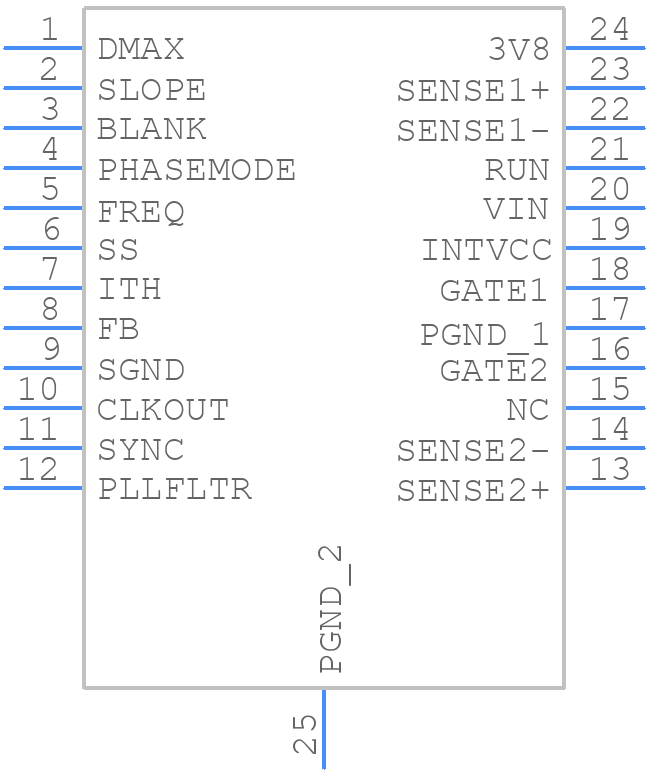

LTC3862EFE-2#PBF - Analog Devices

LTC3862EFE-2#PBF Details

• Manufacturer Part Number:

  LTC3862EFE-2#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  24

• Manufacturer Package Code:

  05-08-1771

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO OPERATES AT 10V

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  5.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Nom:

  3.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Switcher Configuration:

  PHASE-SHIFT

• Switching Frequency-Max:

  500 kHz

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
