LTC3862EUH-1#PBF footprint, schematic symbol and 3D model by Analog Devices

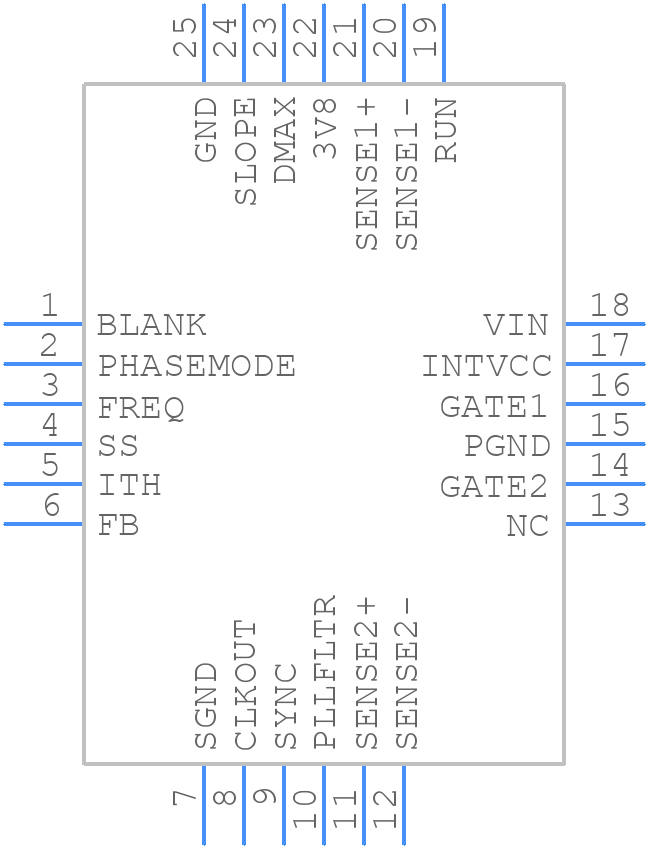

Symbol

click to zoom

PCB Footprints

LTC3862EUH-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)

click to zoom

3D Models

LTC3862EUH-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC3862EUH-1#PBF
Part Number LTC3862EUH-1#PBF
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
Released Date Jul 12, 2021
Last Modified Date Jun 25, 2025 2:25 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC3862EUH-1#PBF Details

Manufacturer Part Number:
LTC3862EUH-1#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
5 X 5 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, QFN-24
Pin Count:
24
Manufacturer Package Code:
05-08-1747
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Additional Feature:
10 VOLT LDO REGULATOR OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
8.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N24
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
3 mA
Surface Mount:
YES
Switcher Configuration:
PHASE-SHIFT
Switching Frequency-Max:
500 kHz
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm

LTC3862EUH-1#PBF Frequently Asked Questions (FAQs)

The recommended PCB layout for the LTC3862EUH-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
The selection of input and output capacitors for the LTC3862EUH-1#PBF depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
The maximum ambient temperature range for the LTC3862EUH-1#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's recommended to ensure good airflow and heat sinking to maintain a safe operating temperature.
To troubleshoot issues with the LTC3862EUH-1#PBF, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Check the input and output voltage levels, and ensure that the capacitors are properly selected and placed. Use an oscilloscope to check for oscillation or instability, and adjust the compensation components as needed. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Yes, the LTC3862EUH-1#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's recommended to consult with Analog Devices Inc for specific requirements and qualifications.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LTC3862EUH-1#PBF Overview

Use the download button to access the LTC3862EUH-1#PBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
