LTC3862EUH-2#PBF - Analog Devices

Description: IC REG CTRLR BOOST/SEPIC 24QFN

Download LTC3862EUH-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

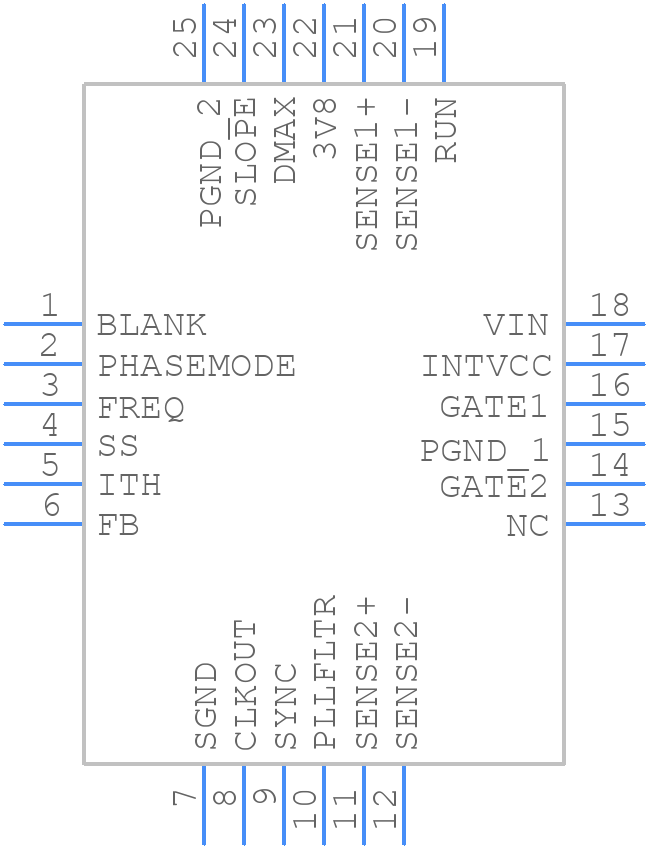

LTC3862EUH-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3862EUH-2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom
3D Models
LTC3862EUH-2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 24-Lead Plastic QFN (5mm × 5mm)
click to zoom

LTC3862EUH-2#PBF Details

  • Manufacturer Part Number:

    LTC3862EUH-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1747

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 10V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    LCC24,.19SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC3862EUH-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3862EUH-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output voltage is within the recommended range, the input voltage is within the specified range, and the output capacitors meet the recommended specifications. Additionally, ensure that the feedback resistors are properly selected and the compensation network is correctly designed.
  • The maximum ambient temperature range for the LTC3862EUH-2#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LTC3862EUH-2#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3862EUH-2#PBF, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the PCB layout is correct. Check for signs of overheating, and ensure that the device is not operating outside its recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3862EUH-2#PBF Overview

Use the download button to access the LTC3862EUH-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
