LTC3862HGN-1#PBF - Analog Devices

Description: Multi-Phase Current Mode Step-Up DC/DC Controller

Download LTC3862HGN-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

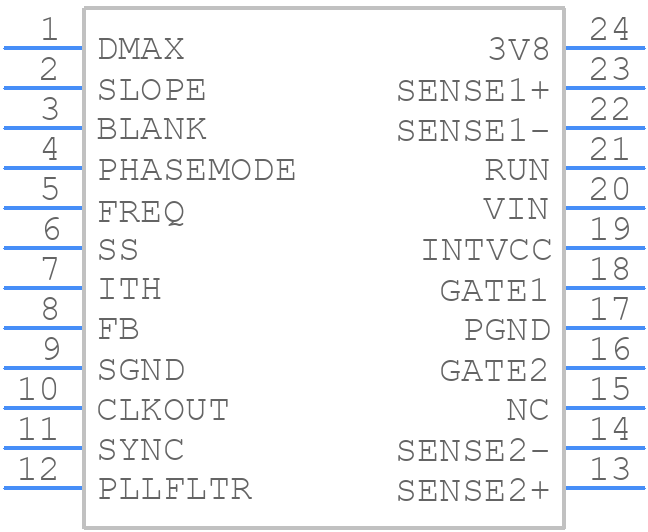

LTC3862HGN-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3862HGN-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 24-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC3862HGN-1#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 24-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC3862HGN-1#PBF Details

  • Manufacturer Part Number:

    LTC3862HGN-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1641 (GN24)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    10 VOLT LDO REGULATOR OUTPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3862HGN-1#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3862HGN-1#PBF involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The selection of external components for the LTC3862HGN-1#PBF depends on the specific application requirements, such as output voltage, output current, and switching frequency. Analog Devices provides a component selection guide and a spreadsheet-based design tool to help engineers select the optimal components for their design.
  • The maximum ambient temperature rating for the LTC3862HGN-1#PBF is 125°C, with a junction temperature rating of 150°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal management and heat sinking in the design.
  • Yes, the LTC3862HGN-1#PBF is qualified for high-reliability and automotive applications, with a rating of AEC-Q100 Grade 1 (-40°C to 125°C) and compliance with various automotive standards, such as ISO 26262 and IATF 16949.
  • To troubleshoot common issues with the LTC3862HGN-1#PBF, engineers can use a combination of visual inspection, measurement tools (e.g., oscilloscopes, signal generators), and simulation software (e.g., SPICE, LTspice) to identify the root cause of the problem. Analog Devices also provides application notes and technical support resources to help engineers debug and optimize their designs.
