LTC3862IGN-2#PBF - Analog Devices

Description: Multi-Phase Current Mode Step-Up DC/DC Controller

Download LTC3862IGN-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

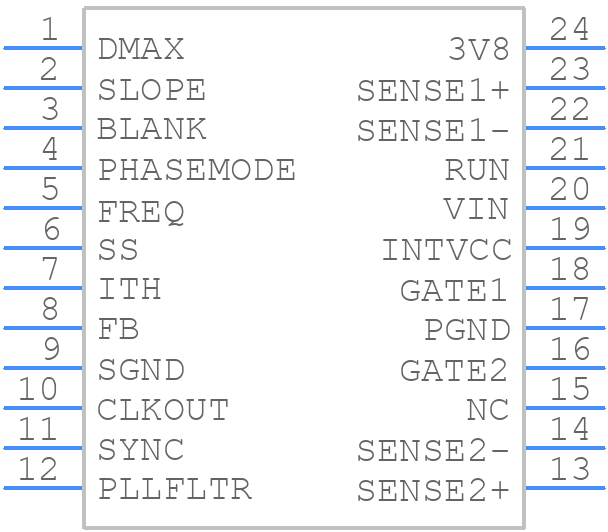

LTC3862IGN-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3862IGN-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 24-Lead Plastic SSOP
click to zoom
3D Models
LTC3862IGN-2#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 24-Lead Plastic SSOP
click to zoom

LTC3862IGN-2#PBF Details

  • Manufacturer Part Number:

    LTC3862IGN-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1641 (GN24)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 10V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3862IGN-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3862IGN-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • The selection of input and output capacitors for the LTC3862IGN-2#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The LTC3862IGN-2#PBF can operate at a maximum ambient temperature of 85°C. However, the device's performance and reliability may be affected at high temperatures, so it's recommended to keep the ambient temperature below 70°C for optimal performance.
  • The LTC3862IGN-2#PBF can be configured for a specific output voltage by adjusting the resistive divider network connected to the FB pin. The output voltage is determined by the ratio of the resistors in the divider network. A good starting point is to use a 1kΩ resistor for R1 and a 2.2kΩ resistor for R2, and then adjust the values as needed to achieve the desired output voltage.
  • The minimum input voltage required for the LTC3862IGN-2#PBF to operate is 2.5V. However, the device's performance and efficiency may be affected at low input voltages, so it's recommended to use an input voltage of at least 3V for optimal performance.
