LTC3864HMSE#PBF - Analog Devices

Description: 60V Low IQ Step-Down DC/DC Controller with 100% Duty Cycle Capability

Download LTC3864HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

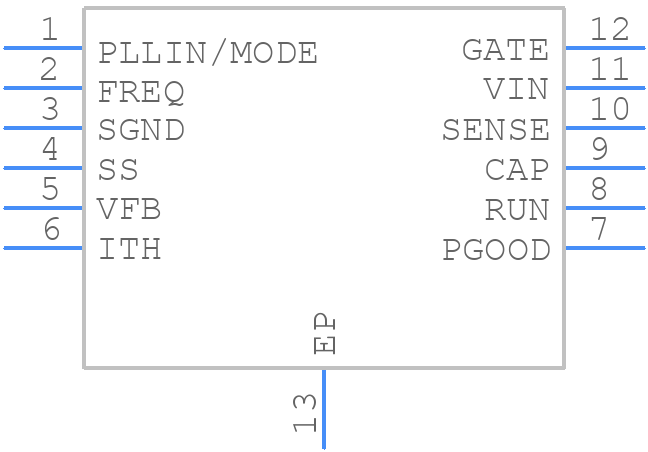

Symbol
LTC3864HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3864HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad-2
click to zoom
3D Models
LTC3864HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad-2
click to zoom

LTC3864HMSE#PBF Details

  • Manufacturer Part Number:

    LTC3864HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    585 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3864HMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LTC3864 can handle is 60V, but it's recommended to keep it below 50V for reliable operation.
  • The compensation network can be optimized by following the guidelines in the datasheet and using the provided equations to calculate the values of the compensation components. Additionally, simulation tools such as LTspice can be used to simulate the circuit and optimize the compensation network.
  • The recommended layout for the LTC3864 involves keeping the high-current paths short and wide, and using a solid ground plane to reduce noise and improve thermal performance. Thermal management involves using a heat sink and ensuring good airflow around the device.
  • Troubleshooting issues with the LTC3864 involves checking the circuit layout, component values, and compensation network. It's also important to check for noise and oscillations on the input and output lines, and to use simulation tools to simulate the circuit and identify potential issues.
  • The LTC3864 is a high-performance, high-power DC/DC converter with a wide input range and high efficiency. It's similar to other devices from Analog Devices, but offers higher power density and faster transient response. The key differences lie in the specific features, such as the input voltage range, output voltage range, and switching frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3864HMSE#PBF Overview

Use the download button to access the LTC3864HMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
