LTC3866EUF#PBF - Analog Devices

Description: Switching Voltage Regulators Current Mode Synchronous Controller for Very Low Value DCR Sensing

Download LTC3866EUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

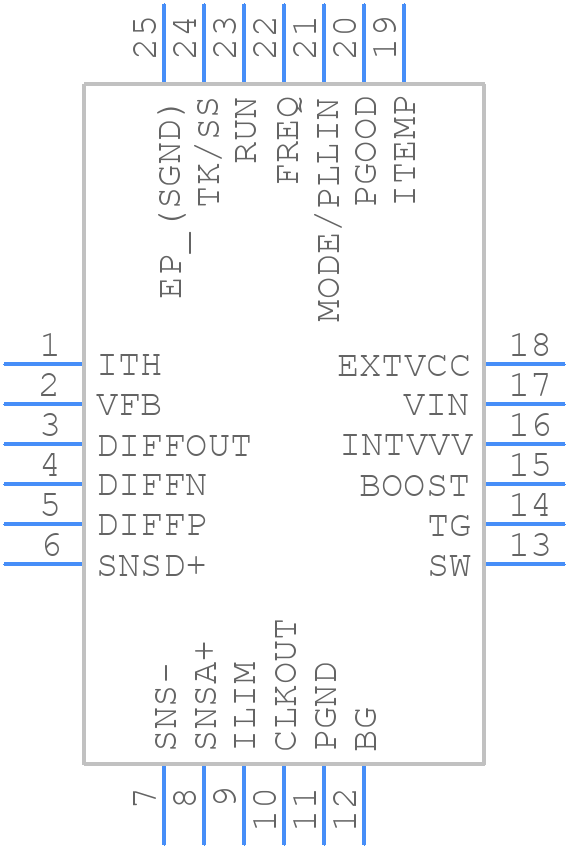

Symbol
LTC3866EUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3866EUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm)
click to zoom
3D Models
LTC3866EUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm)
click to zoom

LTC3866EUF#PBF Details

  • Manufacturer Part Number:

    LTC3866EUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 3.5V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    3.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC3866EUF#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 28V, but it's recommended to keep it below 24V for reliable operation.
  • The compensation network can be optimized by following the guidelines in the datasheet and using the provided equations to calculate the values of the compensation components. Additionally, the LTC3866 demo board can be used as a reference design.
  • The recommended layout and placement for the LTC3866 involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. The datasheet provides more detailed guidelines.
  • To troubleshoot issues with the LTC3866, start by checking the input and output voltages, ensuring that the input voltage is within the recommended range and the output voltage is within the desired range. Also, check the compensation network and ensure that it is properly configured. If the issue persists, consult the datasheet and application notes for further guidance.
  • The LTC3866 is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure that the device is properly heatsinked and that the thermal design is adequate for the application.
