LTC3872ETS8-1#TRMPBF - Analog Devices

Description: No RSENSE Current Mode Boost DC/DC Controller

Download LTC3872ETS8-1#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

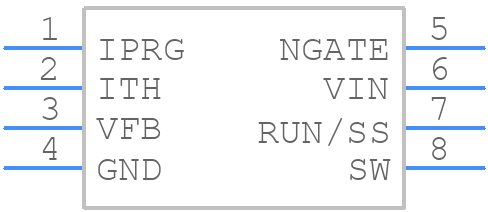

Symbol
LTC3872ETS8-1#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3872ETS8-1#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom
3D Models
LTC3872ETS8-1#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom

LTC3872ETS8-1#TRMPBF Details

  • Manufacturer Part Number:

    LTC3872ETS8-1#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    9.8 V

  • Input Voltage-Min:

    2.75 V

  • Input Voltage-Nom:

    4.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Nom (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    650 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm

LTC3872ETS8-1#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3872 involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • When selecting an inductor for the LTC3872, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, a DC resistance of less than 1 ohm, and a core material with low core loss (e.g., ferrite or powdered iron).
  • The LTC3872 is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the LTC3872 is suitable for high-reliability and automotive applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to meet the requirements of the Automotive Electronics Council (AEC) Q100 standard. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LTC3872, start by verifying the PCB layout and component selection. Check for proper decoupling, filtering, and grounding. Use an oscilloscope to measure the switching waveforms and output voltage ripple. Consult the datasheet and application notes for guidance on troubleshooting common issues, and consider seeking support from Analog Devices' technical support team if needed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3872ETS8-1#TRMPBF Overview

Use the download button to access the LTC3872ETS8-1#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
