LTC3872HTS8-1#TRMPBF - Analog Devices

Description: No RSENSE Current Mode Boost DC/DC Controller

Download LTC3872HTS8-1#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

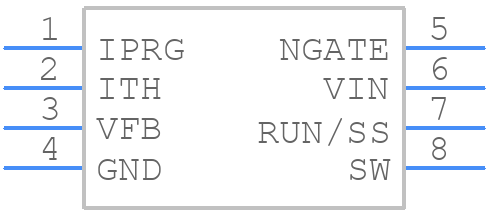

LTC3872HTS8-1#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3872HTS8-1#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom
3D Models
LTC3872HTS8-1#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom

LTC3872HTS8-1#TRMPBF Details

  • Manufacturer Part Number:

    LTC3872HTS8-1#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    9.8 V

  • Input Voltage-Min:

    2.75 V

  • Input Voltage-Nom:

    4.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    650 kHz

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm

LTC3872HTS8-1#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3872HTS8-1 can be found in the LTC3872 demo board manual (DC2026A) available on the Analog Devices website. It provides a detailed layout guide, including component placement, routing, and thermal considerations.
  • Optimizing the compensation network for the LTC3872HTS8-1 requires careful selection of the compensation components (RZ, CZ, and CP) based on the specific application requirements. Analog Devices provides a compensation tool (LTC3872Comp) that can be used to calculate the optimal values for these components.
  • The maximum ambient temperature rating for the LTC3872HTS8-1 is 125°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the maximum junction temperature is 150°C.
  • Yes, the LTC3872HTS8-1 is qualified for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of grades, including the H-grade for high-reliability applications.
  • Troubleshooting issues with the LTC3872HTS8-1 requires a systematic approach, including checking the PCB layout, component values, and power supply quality. Analog Devices provides a troubleshooting guide (AN140) that provides detailed steps and procedures for identifying and resolving common issues.
