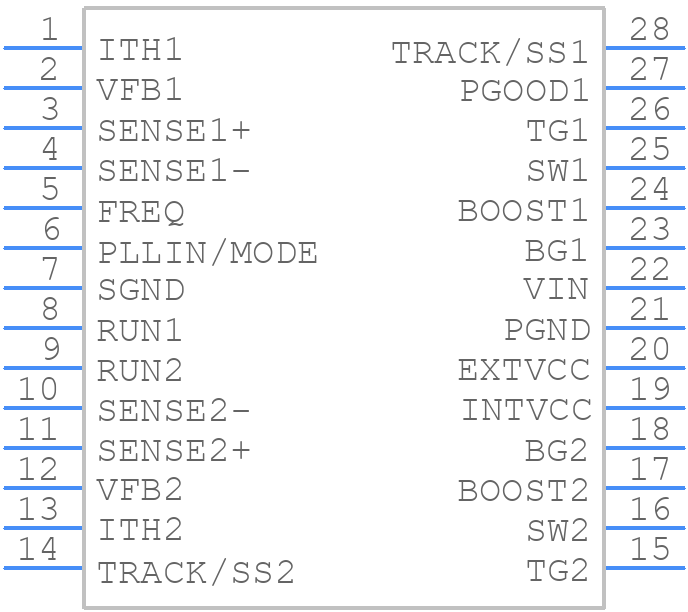

LTC3890EGN-3#PBF - Analog Devices

LTC3890EGN-3#PBF Details

• Manufacturer Part Number:

  LTC3890EGN-3#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  0.150 INCH, LEAD FREE, PLASTIC, SSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  05-08-1641 (GN28)

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  OUTPUT VOLTAGE RANGE FROM 0.8 VOLT TO 24 VOLT

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  4 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  9.893 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  24 V

• Output Voltage-Min:

  0.4 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.75 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  900 kHz

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.899 mm
