LTC3892HFE-1#PBF - Analog Devices

Description: IC REG CTRLR BUCK 28TSSOP

Download LTC3892HFE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

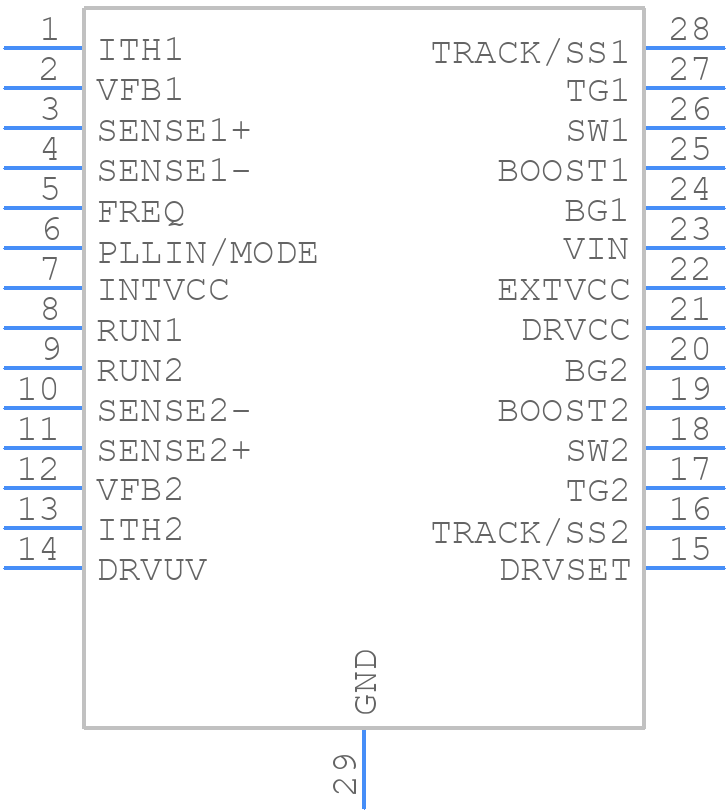

LTC3892HFE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3892HFE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm).
click to zoom
3D Models
LTC3892HFE-1#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm).
click to zoom

LTC3892HFE-1#PBF Details

  • Manufacturer Part Number:

    LTC3892HFE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EA)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 59.4V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PHASE-SHIFT CONTROL

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    59.4 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    585 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3892HFE-1#PBF Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the LTC3892HFE-1#PBF is 125°C. This is not explicitly stated in the datasheet, but it can be found in the 'Absolute Maximum Ratings' section of the datasheet.
  • To ensure stability, follow the layout guidelines provided in the datasheet, use a low-ESR output capacitor, and ensure that the input voltage is within the recommended range. Additionally, consider using a compensation network to optimize the loop response.
  • Yes, the LTC3892HFE-1#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is qualified to automotive and industrial standards. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the overall system.
  • To calculate the power dissipation, use the equation: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. This calculation assumes a steady-state condition and does not account for transient losses.
  • Yes, the LTC3892HFE-1#PBF is compatible with lead-free soldering processes. It is manufactured using a lead-free finish and is suitable for use in RoHS-compliant designs.
