LTC3894IFE#TRPBF footprint, schematic symbol and 3D model by Analog Devices

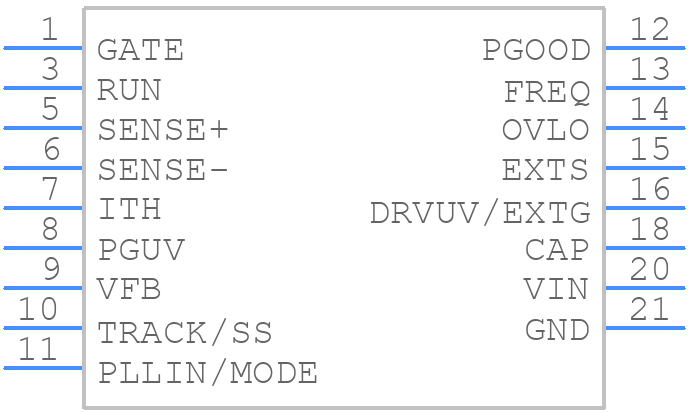

Symbol

click to zoom

PCB Footprints

LTC3894IFE#TRPBF - Analog Devices PCB footprint - Other - Other - FE Package Variation: FE20(16) 20-Lead Plastic TSSOP (4.4mm)_2025-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC3894IFE#TRPBF
Part Number LTC3894IFE#TRPBF
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - FE Package Variation: FE20(16) 20-Lead Plastic TSSOP (4.4mm)_2025-3
Released Date Feb 2, 2025
Last Modified Date Dec 3, 2025 8:53 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC3894IFE#TRPBF Details

Manufacturer Part Number:
LTC3894IFE#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TSSOP-20/16
Pin Count:
16
Manufacturer Package Code:
05-08-1924
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2018-04-26
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
BURST MODE
Input Voltage-Max:
150 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
60 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
850 kHz
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

LTC3894IFE#TRPBF Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the VIN pin is 40V, but it's recommended to keep it below 36V for reliable operation.
To ensure stability, make sure to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, ensure that the feedback resistors are properly selected and that the output voltage is within the recommended range.
The LTC3894 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
The LTC3894 has a SYNC pin that allows synchronization of multiple devices. Connect the SYNC pins of each device together and drive them with a common clock signal. Ensure that the clock signal is within the recommended frequency range and amplitude.
A good PCB layout for the LTC3894 should minimize noise and ensure good thermal dissipation. Keep the input and output capacitors close to the device, and use a solid ground plane to reduce noise. Avoid routing sensitive signals near the switching node and ensure that the thermal pad is properly connected to a heat sink or thermal relief.
