LTC3899HFE#TRPBF - Analog Devices

Description: 60V Low IQ, Triple Output, Buck/Buck/Boost Synchronous Controller with PassThru

Download LTC3899HFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

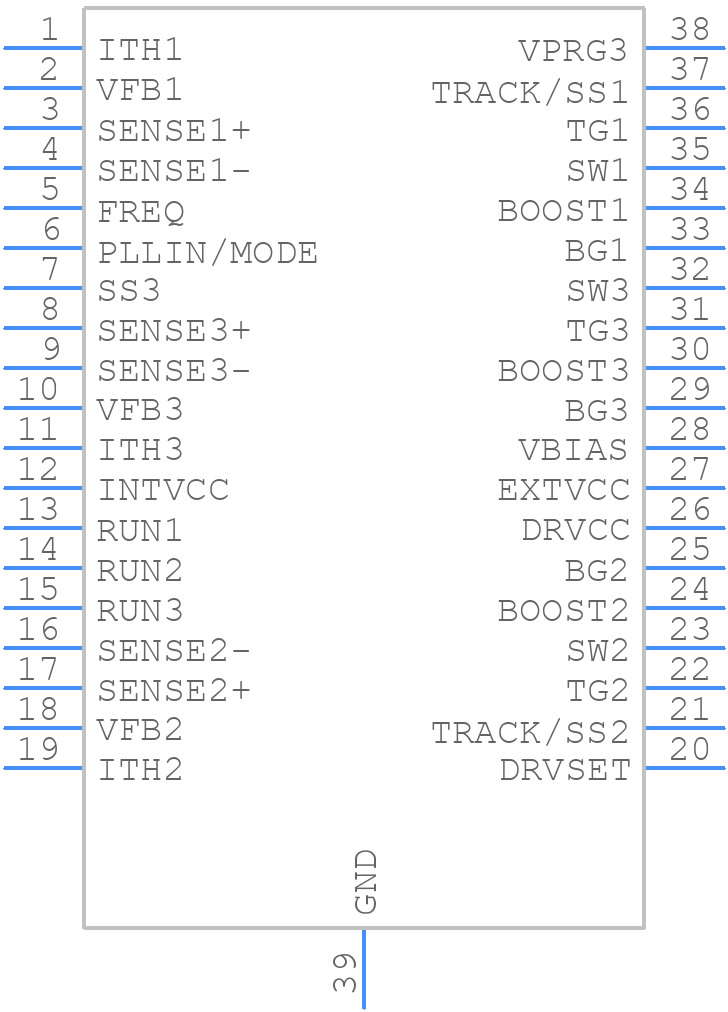

Symbol
LTC3899HFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3899HFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom
3D Models
LTC3899HFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom

LTC3899HFE#TRPBF Details

  • Manufacturer Part Number:

    LTC3899HFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 10V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3899HFE#TRPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3899HFE can be found in the LTC3899 demo board manual (DC1734A) available on the Analog Devices website. It provides a detailed layout guide, including component placement, routing, and thermal management considerations.
  • The compensation network for the LTC3899HFE can be optimized using the provided SPICE model and simulation tools. Analog Devices also provides a compensation calculator tool on their website, which can help simplify the process. Additionally, the datasheet provides guidelines for selecting the compensation components based on the specific application requirements.
  • The maximum ambient temperature rating for the LTC3899HFE is 125°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the maximum junction temperature is 150°C.
  • Yes, the LTC3899HFE is qualified for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of grades, including the H-grade, which is specified for high-reliability applications.
  • Analog Devices provides a soldering and mounting guide for the LTC3899HFE, which includes recommendations for reflow soldering, wave soldering, and manual soldering. The guide also covers PCB layout and land pattern design considerations to ensure reliable assembly and operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3899HFE#TRPBF Overview

Use the download button to access the LTC3899HFE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
