LTC3899IUHF#PBF - Analog Devices

Description: Dual Buck Plus Single Boost Synchronous Controllers n Wide Bias Input Voltage Range: 4.5V to 60V n Outputs Remain in Regulation Through Cold Crank Down to a 2.2V Input Supply Voltage n Buck and Boost Output Voltages Up to 60V n Adjustable Gate Drive Level 5V to 10V (OPTI-DRIVE) n No External Bootstrap Diodes Required n Low Operating IQ: 29μA (One Channel On) n 100% Duty Cycle for Boost Synchronous MOSFET

Download LTC3899IUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

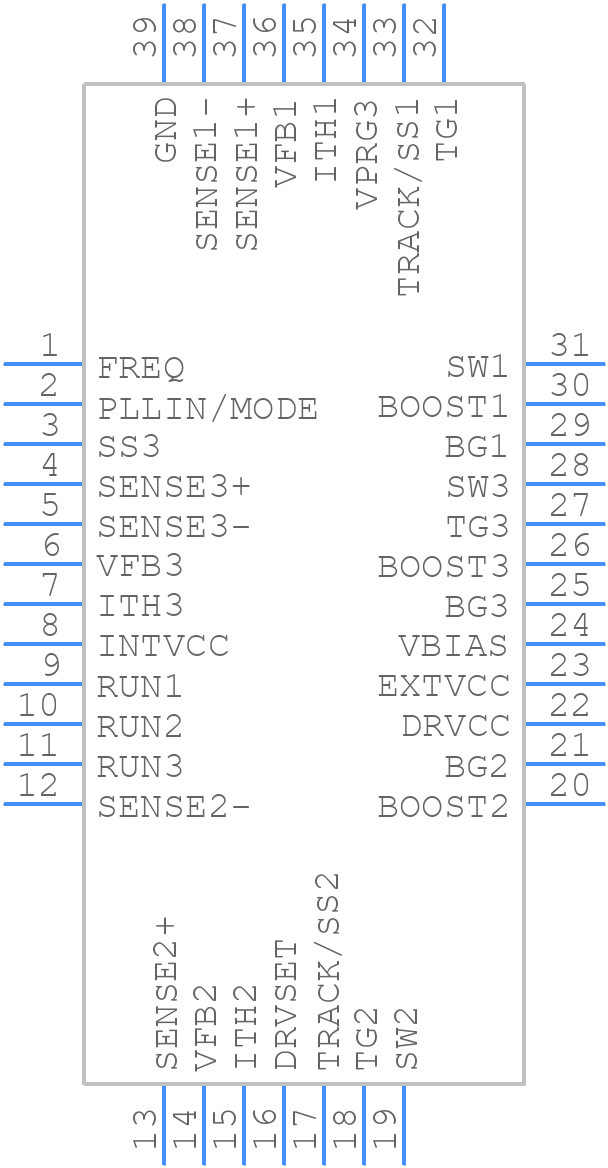

Symbol
LTC3899IUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3899IUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm) (Reference LTC DWG # 05-08-1701 Rev C)
click to zoom
3D Models
LTC3899IUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm) (Reference LTC DWG # 05-08-1701 Rev C)
click to zoom

LTC3899IUHF#PBF Details

  • Manufacturer Part Number:

    LTC3899IUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 10V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC3899IUHF#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To minimize EMI, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive analog nodes.
  • The recommended operating frequency range for the LTC3899IUHF#PBF is between 200 kHz to 1 MHz. Operating outside of this range may affect the converter's efficiency and stability.
  • To select the right inductor, consider the maximum current rating, inductance value, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and an inductance value between 1uH to 10uH.
  • The SYNC pin allows the LTC3899IUHF#PBF to synchronize with an external clock signal. To use it, connect the SYNC pin to an external clock signal with a frequency between 200 kHz to 1 MHz, and ensure the clock signal is stable and has a duty cycle of 50%.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3899IUHF#PBF Overview

Use the download button to access the LTC3899IUHF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
