LTC3900ES8#TRPBF - Analog Devices

Description: Low-Side Gate Driver IC Inverting, Non-Inverting 8-SOIC

Download LTC3900ES8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

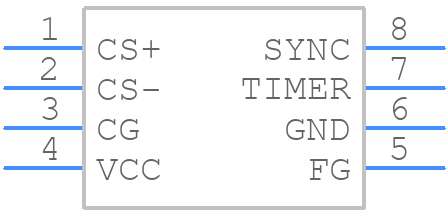

Symbol
LTC3900ES8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3900ES8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LTC3900ES8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LTC3900ES8#TRPBF Details

  • Manufacturer Part Number:

    LTC3900ES8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    11 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    1 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3900ES8#TRPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3900ES8 can be found in the application note AN113, which provides guidelines for layout, thermal management, and component placement to ensure optimal performance.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. The datasheet provides a list of recommended inductors, and the application note AN113 provides guidelines for inductor selection and optimization.
  • The maximum ambient temperature for the LTC3900ES8 is 85°C, but the device can operate up to 125°C with derating. The thermal management guidelines in the application note AN113 should be followed to ensure reliable operation.
  • Yes, the LTC3900ES8 is designed for high-reliability applications and is qualified to automotive and industrial standards. However, it is essential to follow the recommended design and layout guidelines, as well as to perform thorough testing and validation to ensure the device meets the specific application requirements.
  • The datasheet and application note AN113 provide troubleshooting guidelines for common issues, such as startup problems, oscillations, and overcurrent conditions. Additionally, Analog Devices provides technical support and resources, such as the EngineerZone forum, to help engineers troubleshoot and resolve issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3900ES8#TRPBF Overview

Use the download button to access the LTC3900ES8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC39, or try a keyword search, such as Switching Regulator or Controllers
