LTC4001EUF-1#PBF - Analog Devices

Description: Switching Battery Charger Li-Ion/Li-Pol 2000mA 4.1V 16-Pin QFN EP Tube

Download LTC4001EUF-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

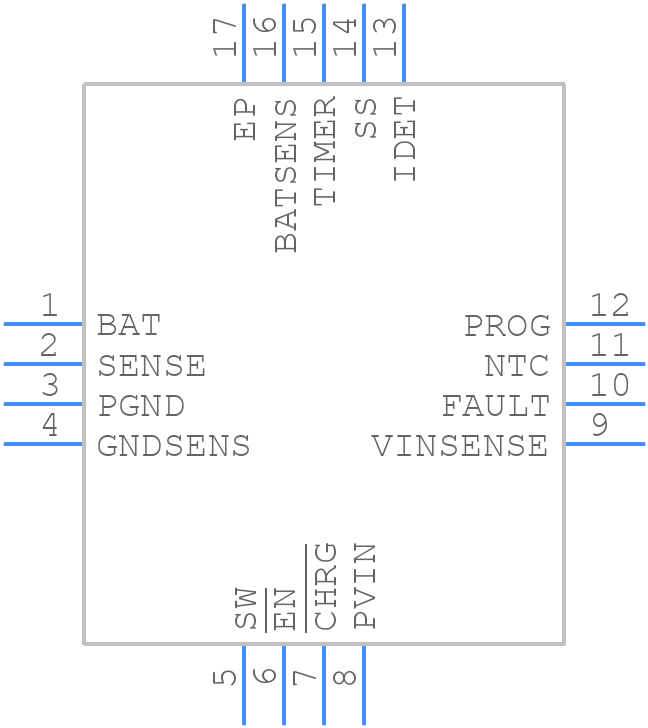

Symbol
LTC4001EUF-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4001EUF-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Plastic QFN (4mm × 4mm)-
click to zoom
3D Models
LTC4001EUF-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Plastic QFN (4mm × 4mm)-
click to zoom

LTC4001EUF-1#PBF Details

  • Manufacturer Part Number:

    LTC4001EUF-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC4001EUF-1#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Use a soft-start circuit to limit the inrush current during startup, and ensure the input voltage rises slowly. During shutdown, use a controlled shutdown sequence to prevent voltage spikes.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended, depending on the input voltage and output current requirements.
  • Use the datasheet's recommended compensation components and adjust them based on the specific application's requirements. You can also use simulation tools or consult with Analog Devices' application engineers for customized support.
  • The LTC4001EUF-1#PBF is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. Consult the datasheet and thermal management guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4001EUF-1#PBF Overview

Use the download button to access the LTC4001EUF-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
