LTC4013EUFD#PBF - Analog Devices

Description: Battery Management 60V Sync Buck Multi-Chemistry Bat Chr

Download LTC4013EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

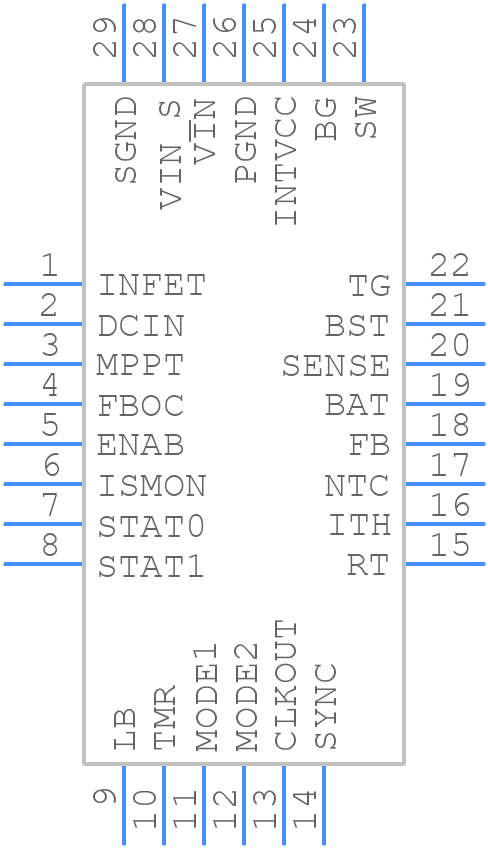

LTC4013EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4013EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN29
click to zoom
3D Models
LTC4013EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - QFN29
click to zoom

LTC4013EUFD#PBF Details

  • Manufacturer Part Number:

    LTC4013EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4013EUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LTC4013EUFD can handle is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the LTC4013EUFD is in a low-power state when not in use, make sure to pull the EN pin low and ensure that the input voltage is removed. This will put the device in shutdown mode, reducing power consumption to less than 1uA.
  • For optimal performance, it's recommended to follow a star-ground layout, keeping the input and output capacitors close to the device. Also, ensure that the high-current paths are short and wide, and that the device is placed away from heat sources and noise-sensitive components.
  • When selecting an inductor for the LTC4013EUFD, consider the maximum current rating, inductance value, and core material. A good starting point is to choose an inductor with a saturation current rating above the maximum output current, and an inductance value between 1uH to 10uH. Also, consider using a shielded inductor to reduce EMI.
  • The LTC4013EUFD has a thermal derating of 1.5°C/W above 25°C. This means that for every 1°C increase in ambient temperature above 25°C, the maximum power dissipation of the device decreases by 1.5W.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4013EUFD#PBF Overview

Use the download button to access the LTC4013EUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits
