LTC4013IUFD#PBF - Analog Devices

Description: Charger IC Multi-Chemistry 28-QFN (4x5)

Download LTC4013IUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

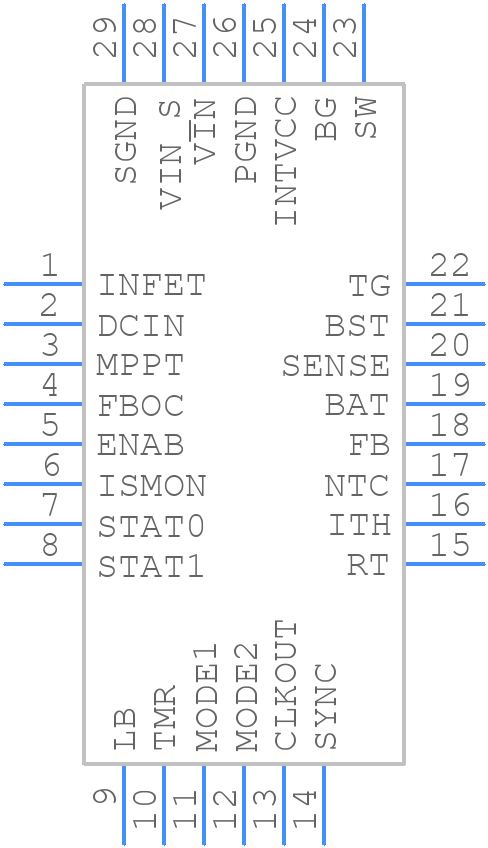

Symbol
LTC4013IUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4013IUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LTC4013IUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom

LTC4013IUFD#PBF Details

  • Manufacturer Part Number:

    LTC4013IUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4013IUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LTC4013IUFD can handle is 18V, but it's recommended to operate within the 4.5V to 15V range for optimal performance.
  • To ensure the LTC4013IUFD is in a low-power state during shutdown, make sure the EN pin is pulled low and the input voltage is removed. This will put the device in a low-power shutdown mode, reducing quiescent current to less than 1μA.
  • For optimal performance, it's recommended to follow a star-ground layout, keeping the input and output capacitors close to the device. Place the input capacitor between the VIN pin and the GND pin, and the output capacitor between the VOUT pin and the GND pin. Keep the layout symmetrical and avoid routing high-current traces near sensitive analog signals.
  • When selecting an inductor for the LTC4013IUFD, consider the following factors: inductance value, DC resistance, and saturation current. A good starting point is to choose an inductor with an inductance value between 1.5μH and 3.3μH, a DC resistance less than 100mΩ, and a saturation current greater than the maximum output current.
  • The LTC4013IUFD has a thermal derating of 6.4mW/°C above 25°C. This means that for every degree above 25°C, the maximum power dissipation decreases by 6.4mW. Be sure to consider this when designing your thermal management strategy.
