LTC4013IUFD#TRPBF - Analog Devices

Description: Battery Management 60V Synchronous Buck Multi-Chemistry Battery Charger

Download LTC4013IUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

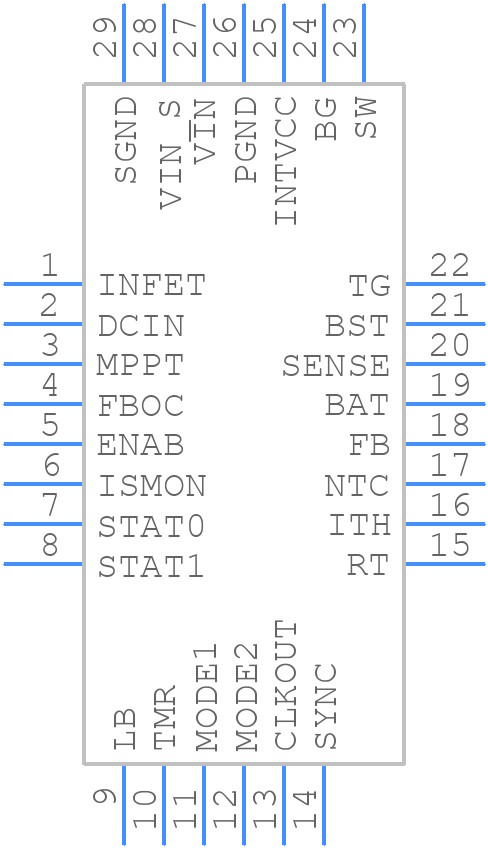

Symbol
LTC4013IUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4013IUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead (4mm × 5mm) Plastic QFN
click to zoom
3D Models
LTC4013IUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead (4mm × 5mm) Plastic QFN
click to zoom

LTC4013IUFD#TRPBF Details

  • Manufacturer Part Number:

    LTC4013IUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC4013IUFD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4013IUFD#TRPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure reliable start-up and shutdown, make sure to follow the recommended power-up and power-down sequencing, and use a soft-start circuit to limit inrush current. Also, ensure that the input voltage is stable and within the recommended range before enabling the charger.
  • The LTC4013IUFD#TRPBF is rated for operation up to 125°C ambient temperature, but it's recommended to derate the device for reliable operation above 85°C. Consult the datasheet for thermal derating curves and guidelines.
  • The LTC4013IUFD#TRPBF is optimized for Li-Ion batteries, but it can be used with other battery chemistries such as LiFePO4 or NiMH with some modifications to the charging profile and voltage settings. However, it's recommended to consult with Analog Devices Inc or a battery expert to ensure safe and reliable operation.
  • To troubleshoot issues with the charger not detecting the battery, check the battery connection and wiring, ensure the battery voltage is within the recommended range, and verify that the charger is properly configured and enabled. Also, check the datasheet for troubleshooting guidelines and fault detection modes.
