LTC4015EUHF#TRPBF - Analog Devices

Description: Battery Management Multichemistry Buck Battery Charger Controller with Digital Telemetry System

Download LTC4015EUHF#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

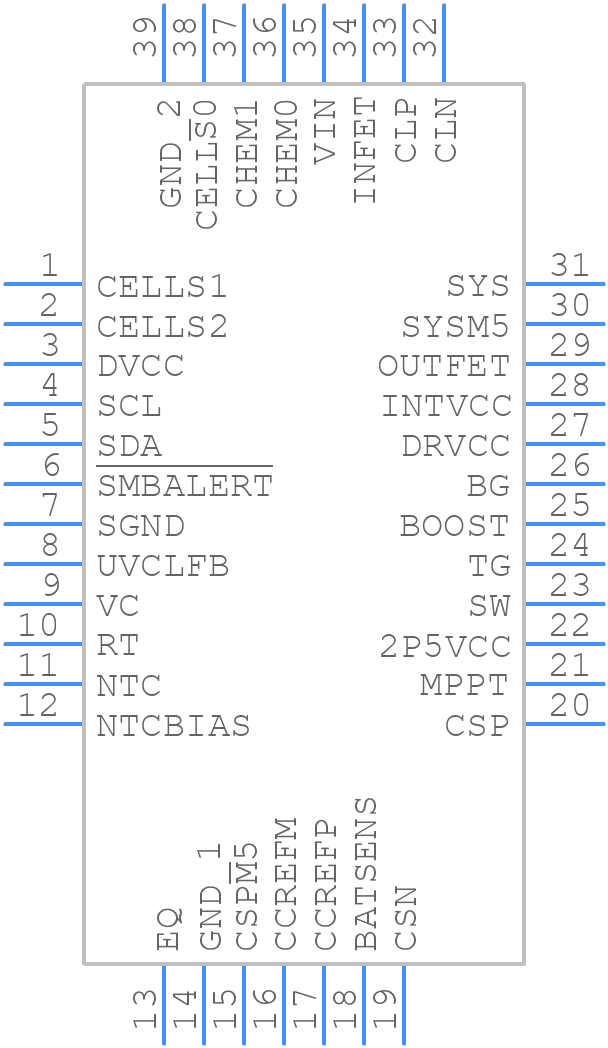

LTC4015EUHF#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4015EUHF#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF (38-Lead QFN)
click to zoom
3D Models
LTC4015EUHF#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF (38-Lead QFN)
click to zoom

LTC4015EUHF#TRPBF Details

  • Manufacturer Part Number:

    LTC4015EUHF#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC4015EUHF#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4015EUHF is 18V, but it's recommended to operate within the 4.5V to 15V range for optimal performance.
  • To ensure the LTC4015EUHF operates within the recommended operating conditions, make sure to follow the guidelines outlined in the datasheet, including input voltage, output current, and thermal management.
  • The EN (Enable) pin on the LTC4015EUHF is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled.
  • To configure the LTC4015EUHF for a specific output voltage, use the FB (Feedback) pin and the resistive divider network to set the desired output voltage. The datasheet provides a formula to calculate the required resistor values.
  • The maximum output current that the LTC4015EUHF can deliver is 1.5A, but it's recommended to operate within the 0.5A to 1.2A range for optimal performance and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4015EUHF#TRPBF Overview

Use the download button to access the LTC4015EUHF#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits
