LTC4015IUHF#TRPBF - Analog Devices

Description: Battery Management Multichemistry Buck Battery Charger Controller with Digital Telemetry System

Download LTC4015IUHF#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

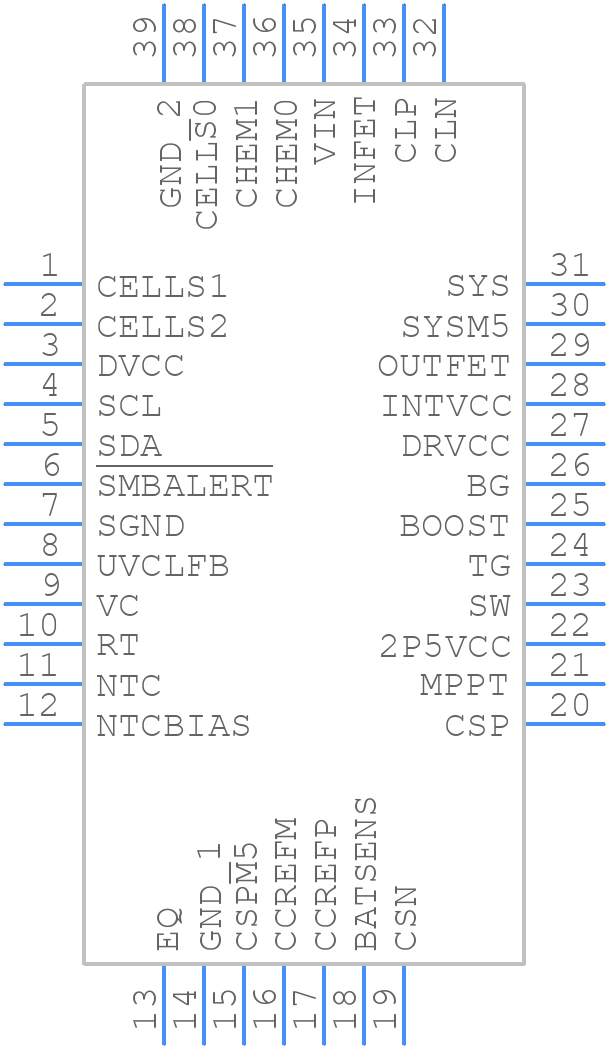

LTC4015IUHF#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

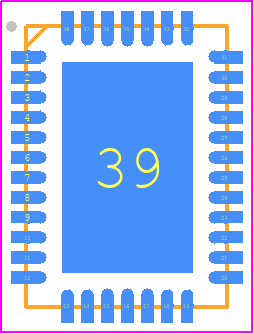

LTC4015IUHF#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm)
click to zoom
3D Models
LTC4015IUHF#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF Package 38-Lead Plastic QFN (5mm × 7mm)
click to zoom

LTC4015IUHF#TRPBF Details

  • Manufacturer Part Number:

    LTC4015IUHF#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC4015IUHF#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4015IUHF is 18V, but it's recommended to operate within the 4.5V to 14V range for optimal performance.
  • To ensure the LTC4015IUHF operates within its thermal limits, make sure to provide adequate heat sinking, keep the device away from high-temperature sources, and avoid high-power dissipation during operation.
  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, keep the input and output capacitors close to the device, and use short, wide traces for the high-current paths.
  • To troubleshoot issues with the LTC4015IUHF, start by checking the input voltage, output voltage, and current levels. Verify that the device is properly configured and that the PCB layout is correct. Use an oscilloscope to check for noise, ringing, or other anomalies on the output.
  • Yes, the LTC4015IUHF is suitable for high-reliability and aerospace applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly qualified and screened for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4015IUHF#TRPBF Overview

Use the download button to access the LTC4015IUHF#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
