LTC4040EUFD#TRPBF - Analog Devices

Description: Battery Power Management IC Multi-Chemistry 24-QFN (4x5)

Download LTC4040EUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

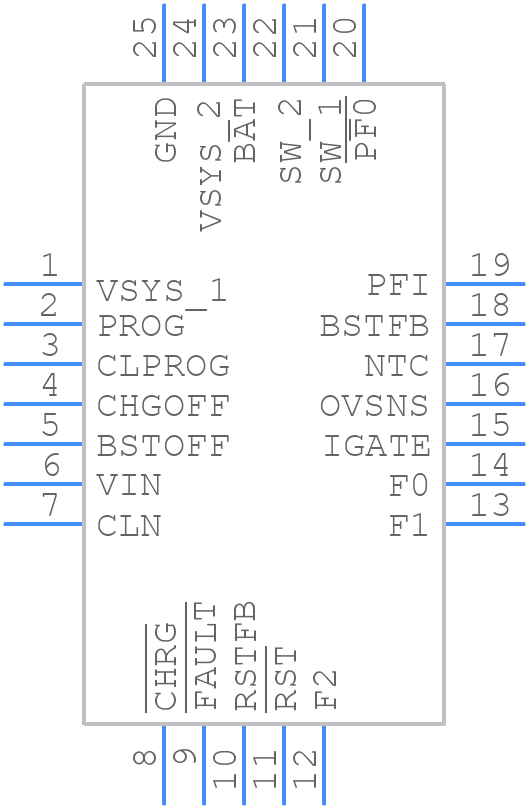

LTC4040EUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4040EUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)_2025
click to zoom
3D Models
LTC4040EUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 24-Lead Plastic QFN (4mm × 5mm)_2025
click to zoom

LTC4040EUFD#TRPBF Details

  • Manufacturer Part Number:

    LTC4040EUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY BACKUP SUPERVISOR

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4040EUFD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4040EUFD is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output voltage should be decoupled with a 10uF capacitor to ground.
  • The maximum output current that the LTC4040EUFD can deliver is 2A, but it's recommended to keep it below 1.5A for optimal performance and reliability.
  • The output voltage of the LTC4040EUFD can be configured by connecting a resistor divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2).
  • The thermal shutdown temperature of the LTC4040EUFD is 150°C. The device will shut down when the junction temperature exceeds this value, and will restart when the temperature drops below 130°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4040EUFD#TRPBF Overview

Use the download button to access the LTC4040EUFD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
