LTC4053EDD-4.2#PBF - Analog Devices

Description: Battery Management USB Compatible Lithium-Ion Bat Chr w/ Th

Download LTC4053EDD-4.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

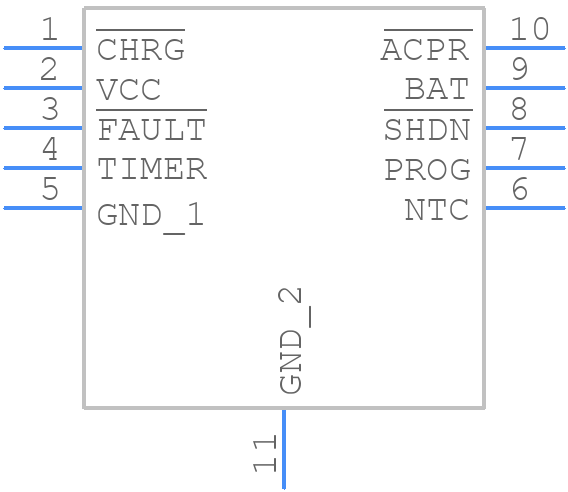

Symbol
LTC4053EDD-4.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4053EDD-4.2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LTC4053EDD-4.2#PBF
click to zoom
3D Models
LTC4053EDD-4.2#PBF - Analog Devices - 3D model - Small Outline No-lead - LTC4053EDD-4.2#PBF
click to zoom

LTC4053EDD-4.2#PBF Details

  • Manufacturer Part Number:

    LTC4053EDD-4.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4053EDD-4.2#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4053EDD-4.2 is 18V, but it's recommended to keep it below 15V for reliable operation.
  • Consult the datasheet and application notes for guidance on configuring the LTC4053EDD-4.2 for your specific battery chemistry. You may need to adjust the resistor values and capacitor selection to optimize performance.
  • The typical charging current for the LTC4053EDD-4.2 is 1A, but it can be adjusted up to 2A with external components. However, it's essential to ensure the device can handle the increased current and thermal dissipation.
  • Proper thermal management is crucial for the LTC4053EDD-4.2. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout guidelines to minimize thermal resistance.
  • Yes, the LTC4053EDD-4.2 can be used for charging multiple batteries in parallel, but you'll need to ensure each battery has its own charging circuit and that the total charging current doesn't exceed the device's rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4053EDD-4.2#PBF Overview

Use the download button to access the LTC4053EDD-4.2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
