Technical Content
Part Image

LTC4058EDD-4.2#PBF - Analog Devices

Description: IC CHARGER BATTERY LI-ION 8-DFN

Download LTC4058EDD-4.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

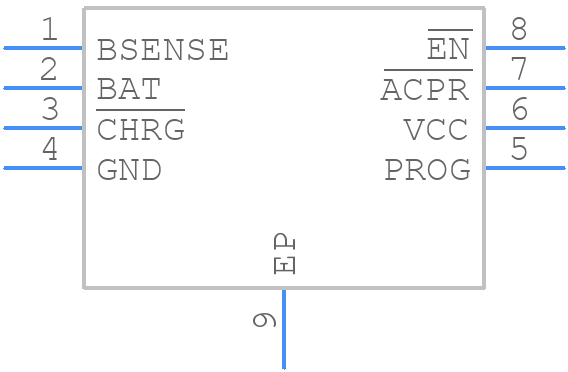

LTC4058EDD-4.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4058EDD-4.2#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC4058EDD-4.2#PBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC4058EDD-4.2#PBF Details

  • Manufacturer Part Number:

    LTC4058EDD-4.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, MO-229WEED-1, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4058EDD-4.2#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4058EDD-4.2 is 18V, but it's recommended to keep it below 15V for optimal performance and to prevent overheating.
  • To ensure proper thermal management, make sure to provide a sufficient heat sink, keep the device away from other heat sources, and ensure good airflow around the device. The thermal pad on the bottom of the package should be connected to a copper plane on the PCB to help dissipate heat.
  • For optimal performance, it's recommended to follow a star-grounding layout, keep the input and output capacitors close to the device, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the power paths.
  • The output voltage of the LTC4058EDD-4.2 can be adjusted by changing the resistor divider network connected to the FB pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage.
  • The minimum input capacitance required for the LTC4058EDD-4.2 is 10uF, but it's recommended to use a higher value (e.g., 22uF) to ensure stability and optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4058EDD-4.2#PBF Overview

Use the download button to access the LTC4058EDD-4.2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
