LTC4079EDD#TRPBF - Analog Devices

Description: Battery Management Low Iq 60V, 250mA Linear Charger

Download LTC4079EDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

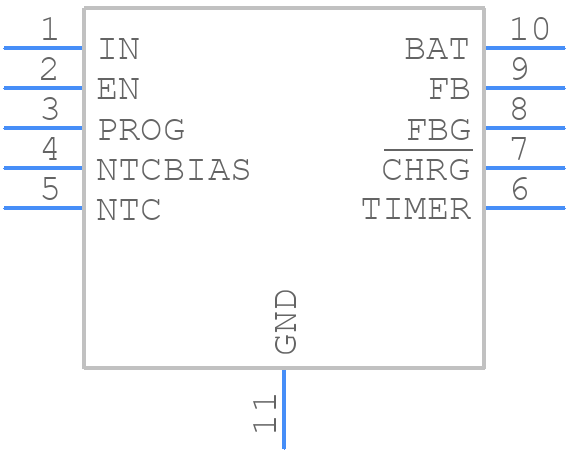

Symbol
LTC4079EDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4079EDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom
3D Models
LTC4079EDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom

LTC4079EDD#TRPBF Details

  • Manufacturer Part Number:

    LTC4079EDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4079EDD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be safely applied to the LTC4079EDD is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the LTC4079EDD is operating within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid exceeding the maximum junction temperature of 150°C.
  • For optimal performance, place the LTC4079EDD close to the input capacitors, keep the input and output traces short and wide, and avoid routing sensitive analog signals near the inductor.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1-10μH) to ensure efficient energy transfer and minimize losses.
  • The EN (enable) pin is used to turn the converter on and off. Connect EN to VIN to enable the converter, or connect it to GND to disable it. You can also use a logic signal to control the EN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4079EDD#TRPBF Overview

Use the download button to access the LTC4079EDD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
