LTC4085EDE-4#PBF - Analog Devices

Description: Battery Management USB Power Manager and Li-Ion Charger

Download LTC4085EDE-4#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

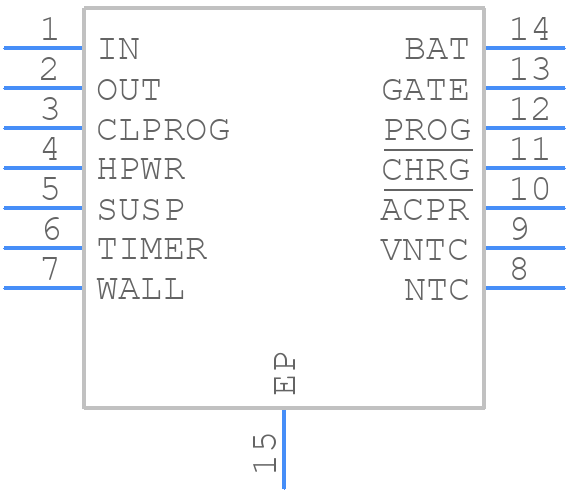

Symbol
LTC4085EDE-4#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4085EDE-4#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 14-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC4085EDE-4#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 14-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC4085EDE-4#PBF Details

  • Manufacturer Part Number:

    LTC4085EDE-4#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WGED-3, DFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1708

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC4085EDE-4#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4085EDE-4#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 22uF to 47uF. The capacitor selection should be based on the specific application requirements and the device's operating frequency.
  • The LTC4085EDE-4#PBF has an operating ambient temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C. The device's performance and reliability may be affected if it is operated outside of this temperature range.
  • Proper thermal management involves providing a heat sink or a thermal pad on the device, ensuring good airflow around the device, and keeping the device away from other heat sources. The device's thermal resistance (θJA) is 30°C/W, and the maximum power dissipation is 2.5W.
  • The recommended input voltage range for the LTC4085EDE-4#PBF is 3.5V to 36V, but the device can operate with input voltages as low as 3V and as high as 40V. However, the device's performance and efficiency may be affected if it is operated outside of the recommended input voltage range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4085EDE-4#PBF Overview

Use the download button to access the LTC4085EDE-4#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
