LTC4089EDJC-3#PBF - Analog Devices

Description: Battery Management USB Pwr Manager w/ Hi V Sw Chr

Download LTC4089EDJC-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

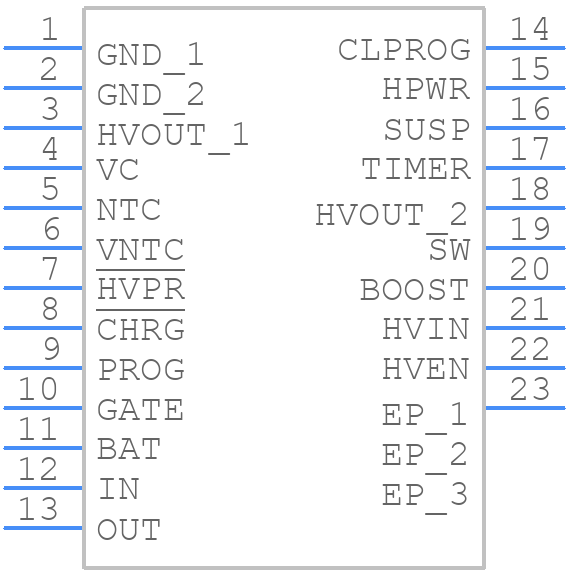

LTC4089EDJC-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4089EDJC-3#PBF - Analog Devices PCB footprint - Other - Other - DJC Package 22-Lead Plastic DFN (6mm × 3mm) (Reference LTC DWG # 05-08-1714 Rev Ø)
click to zoom
3D Models
LTC4089EDJC-3#PBF - Analog Devices - 3D model - Other - DJC Package 22-Lead Plastic DFN (6mm × 3mm) (Reference LTC DWG # 05-08-1714 Rev Ø)
click to zoom

LTC4089EDJC-3#PBF Details

  • Manufacturer Part Number:

    LTC4089EDJC-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-22

  • Pin Count:

    22

  • Manufacturer Package Code:

    05-08-1714

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PDSO-N22

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC22,.14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.13

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4089EDJC-3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4089EDJC-3#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and EMI.
  • The selection of input and output capacitors for the LTC4089EDJC-3#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. X5R or X7R ceramic capacitors are good options.
  • The LTC4089EDJC-3#PBF has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a maximum junction temperature of 150°C. It's essential to ensure that the device is properly cooled to prevent overheating and ensure reliable operation.
  • Yes, the LTC4089EDJC-3#PBF is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the PCB should be designed to withstand the vibration and shock requirements of the application.
  • To troubleshoot issues with the LTC4089EDJC-3#PBF, start by checking the input and output voltages, as well as the current drawn from the input source. Verify that the device is properly configured and that the input and output capacitors are correctly sized. Use an oscilloscope to check for noise and ripple on the input and output lines. Consult the datasheet and application notes for more detailed troubleshooting guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4089EDJC-3#PBF Overview

Use the download button to access the LTC4089EDJC-3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
