LTC4098EUDC-3.6#PBF - Analog Devices

Description: Battery Management USB Compatible Switching Power Manager/LiFePO4 Charger with Overvoltage Protection

Download LTC4098EUDC-3.6#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

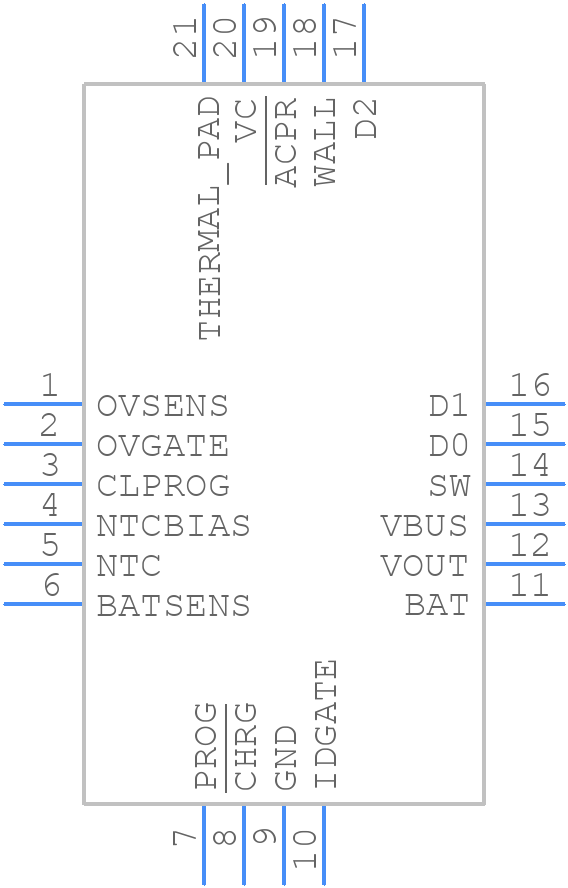

Symbol
LTC4098EUDC-3.6#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4098EUDC-3.6#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Plastic QFN (3mm × 4mm)
click to zoom
3D Models
LTC4098EUDC-3.6#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead Plastic QFN (3mm × 4mm)
click to zoom

LTC4098EUDC-3.6#PBF Details

  • Manufacturer Part Number:

    LTC4098EUDC-3.6#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC4098EUDC-3.6#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4098EUDC-3.6 is 36V, but it's recommended to keep it below 32V for reliable operation.
  • To ensure the LTC4098EUDC-3.6 operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high current operation for extended periods.
  • Yes, the LTC4098EUDC-3.6 is designed to operate in high-vibration environments, but it's recommended to follow proper PCB design and assembly practices to ensure the device is securely mounted and connected.
  • To troubleshoot issues with the LTC4098EUDC-3.6, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are correctly sized and connected. Consult the datasheet and application notes for guidance.
  • Yes, the LTC4098EUDC-3.6 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's recommended reflow profile and soldering guidelines to ensure reliable assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4098EUDC-3.6#PBF Overview

Use the download button to access the LTC4098EUDC-3.6#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC40, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
