LTC4121IUD#PBF - Analog Devices

Description: Battery Management 40V 400mA Synchronous Step-Down Battery Charger

Download LTC4121IUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

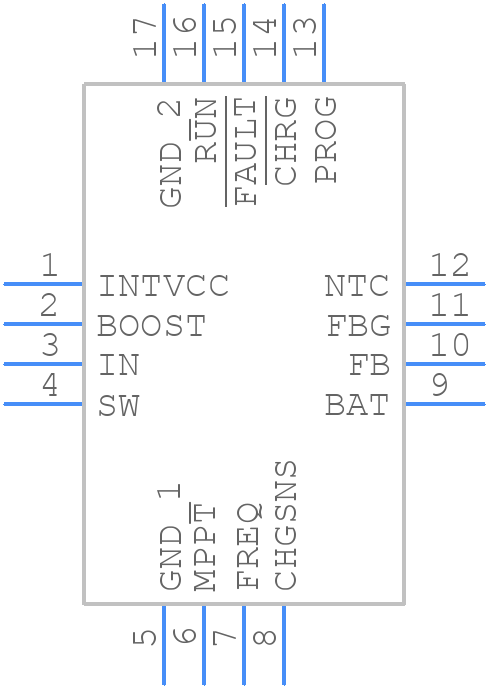

LTC4121IUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4121IUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Plastic QFN (3mm × 3mm)+
click to zoom
3D Models
LTC4121IUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Plastic QFN (3mm × 3mm)+
click to zoom

LTC4121IUD#PBF Details

  • Manufacturer Part Number:

    LTC4121IUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4.4 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.21V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4121IUD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Use a soft-start circuit to limit the inrush current during startup, and ensure the input voltage ramps up slowly. During shutdown, use a controlled shutdown sequence to prevent voltage spikes.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the IC and have a voltage rating of at least 2x the maximum input voltage.
  • Use a thermal camera to check for hotspots, and verify the input voltage, output voltage, and current sense resistor values. Check for proper PCB layout, component selection, and soldering quality.
  • Yes, the LTC4121IUD#PBF can operate in high-temperature environments, but the maximum junction temperature (TJ) should not exceed 125°C. Derate the output current and ensure proper heat sinking to prevent overheating.
