LTC4124EV#TRMPBF - Analog Devices

Description: Wireless Charging ICs 7.5mA Wrlss LiIon Chrgr w 1.2V StpDwn DC

Download LTC4124EV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

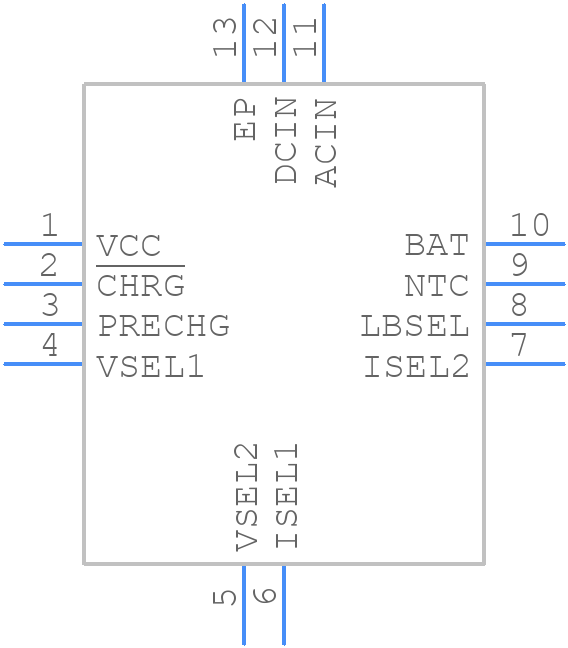

LTC4124EV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4124EV#TRMPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LQFN 12-Lead (2mm × 2mm
click to zoom
3D Models
LTC4124EV#TRMPBF - Analog Devices - 3D model - Quad Flat No-Lead - LQFN 12-Lead (2mm × 2mm
click to zoom

LTC4124EV#TRMPBF Details

  • Manufacturer Part Number:

    LTC4124EV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.83 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LTC4124EV#TRMPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat.
  • Choose an inductor with a high saturation current rating, low DCR, and a core material that can handle high frequencies. The inductor value should be selected based on the output voltage, input voltage, and switching frequency.
  • The maximum ambient temperature for the LTC4124EV is 85°C, but it can be derated to 70°C for high-reliability applications. Ensure proper thermal design and heat sinking to maintain a safe junction temperature.
  • Yes, but ensure that the PCB is properly secured and the components are properly soldered. Use a vibration-resistant capacitor and consider adding mechanical stress relief to the PCB.
  • Check the input voltage, output voltage, and current sense resistor values. Verify the inductor selection and PCB layout. Use an oscilloscope to check for ringing, overshoot, or oscillations. Consult the datasheet and application notes for troubleshooting guides.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4124EV#TRMPBF Overview

Use the download button to access the LTC4124EV#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits
