LTC4126EV#TRMPBF - Analog Devices

Description: PWR MGMT BATTERY MGMT

Download LTC4126EV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

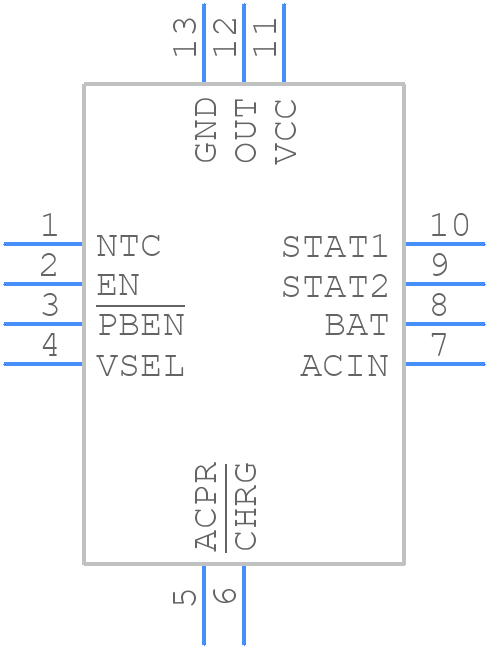

LTC4126EV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4126EV#TRMPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LQFN Package
click to zoom
3D Models
LTC4126EV#TRMPBF - Analog Devices - 3D model - Quad Flat No-Lead - LQFN Package
click to zoom

LTC4126EV#TRMPBF Details

  • Manufacturer Part Number:

    LTC4126EV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.83 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LTC4126EV#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC4126 is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW pin) away from sensitive nodes.
  • The recommended inductor value for the LTC4126 is between 1.5uH to 3.3uH, and it's recommended to use a shielded inductor with a low DCR (DC resistance) to minimize losses. A good option is the Würth Elektronik 744778100 or similar.
  • The LTC4126 can be programmed using the FB (feedback) pin and an external resistor divider network. The output voltage is set by the ratio of the resistors and the internal reference voltage (1.21V). Use the formula: Vout = 1.21V x (R1 + R2) / R2 to calculate the required resistor values.
  • The maximum output current that the LTC4126 can deliver is 2A, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4126EV#TRMPBF Overview

Use the download button to access the LTC4126EV#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits
