LTC4162EUFD-FFS#PBF - Analog Devices

Description: Battery Management 35V/3.2A Multi-Cell LiFePO4 Step-Down Battery Charger with PowerPath and I2C Telemetry

Download LTC4162EUFD-FFS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

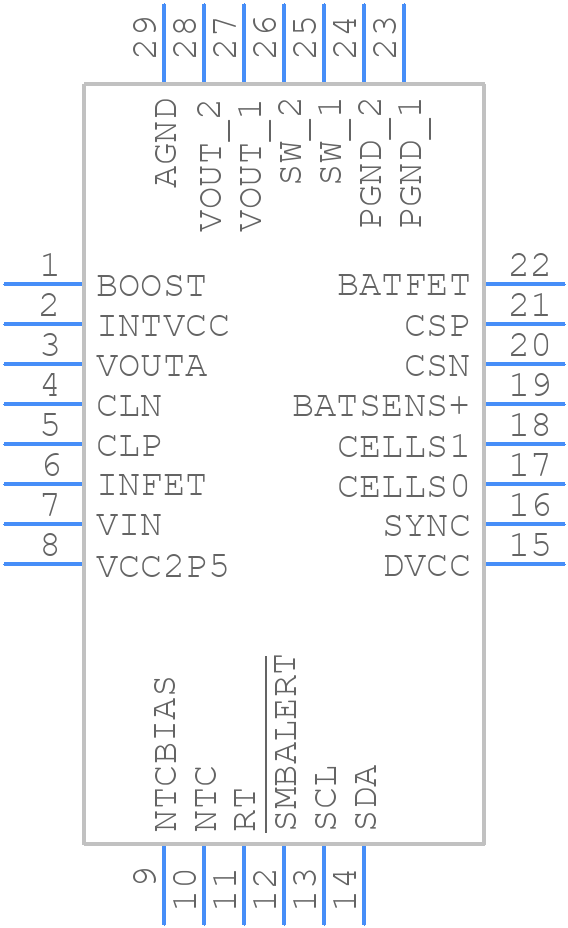

LTC4162EUFD-FFS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162EUFD-FFS#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN
click to zoom
3D Models
LTC4162EUFD-FFS#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN
click to zoom

LTC4162EUFD-FFS#PBF Details

  • Manufacturer Part Number:

    LTC4162EUFD-FFS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFD-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162EUFD-FFS#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC4162EUFD-FFS#PBF can be found in the application note AN140, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance and minimize noise and EMI.
  • The selection of external components for the LTC4162EUFD-FFS#PBF depends on the specific application requirements, such as input voltage, output voltage, and current. Analog Devices provides a component selection guide and a design tool, the LTpowerCAD, which can help engineers select the correct components and design the power supply.
  • The maximum ambient temperature that the LTC4162EUFD-FFS#PBF can operate in is 85°C, with a junction temperature of 125°C. However, the device can operate at higher temperatures with derating, and the thermal management should be carefully considered to ensure reliable operation.
  • Troubleshooting common issues with the LTC4162EUFD-FFS#PBF requires a systematic approach, including checking the PCB layout, component values, and input/output voltage and current. Analog Devices provides a troubleshooting guide and application notes that can help engineers identify and resolve common issues.
  • Yes, the LTC4162EUFD-FFS#PBF is compatible with lead-free soldering processes, and it meets the requirements of the RoHS and WEEE directives. However, the soldering process should be carefully controlled to ensure that the device is not damaged during assembly.
