LTC4162EUFD-L40#PBF - Analog Devices

Description: Li-Ion/Polymer Battery Charger with Termination n Wide Charging Input Voltage Range: 4.5V to 35V n High Efficiency Synchronous Operation n 16-Bit Digital Telemetry System Monitors VBAT, IBAT, RBAT, TBAT, TDIE, VIN, IIN, VOUT n Charges 1-8 Lithium-Ion/Polymer Cells n Input Undervoltage Charge Current Limit Loop n Input MPPT for Solar Panel Inputs n Input Current Limit Prioritizes System Load Output n Low Loss PowerPath™ n Instant-On Operation with Discharged or Missing Battery n JEITA Temperature

Download LTC4162EUFD-L40#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

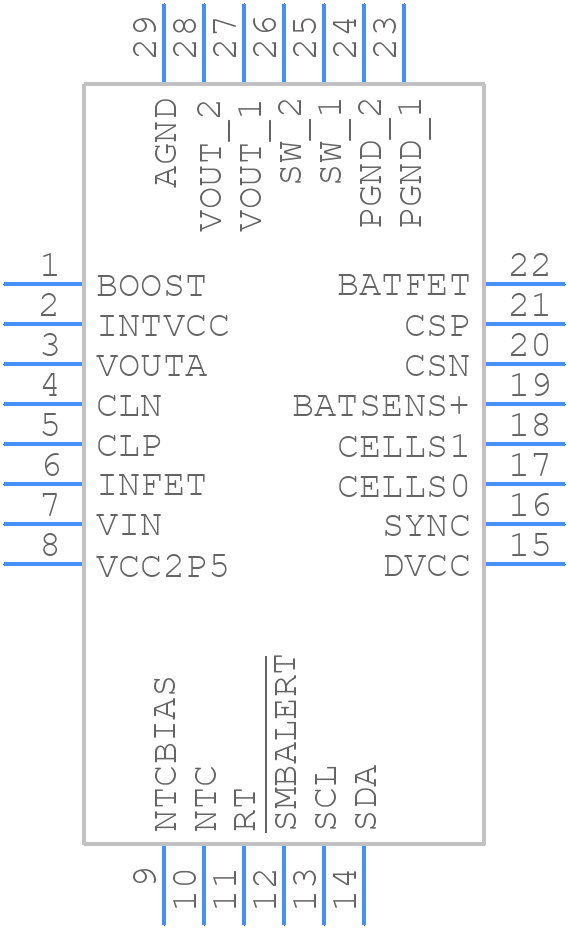

LTC4162EUFD-L40#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162EUFD-L40#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm × 5mm) (Reference LTC DWG # 05-08-1712 Rev C)
click to zoom
3D Models
LTC4162EUFD-L40#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm × 5mm) (Reference LTC DWG # 05-08-1712 Rev C)
click to zoom

LTC4162EUFD-L40#PBF Details

  • Manufacturer Part Number:

    LTC4162EUFD-L40#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162EUFD-L40#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC4162EUFD-L40#PBF can be found in the application note AN140, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance and minimize noise and EMI.
  • The selection of input and output capacitors for the LTC4162EUFD-L40#PBF depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. The datasheet provides guidelines for capacitor selection, and additional information can be found in the application note AN140.
  • The maximum ambient temperature range for the LTC4162EUFD-L40#PBF is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required.
  • The LTC4162EUFD-L40#PBF's internal registers can be programmed using the I2C interface. The datasheet provides a detailed description of the register map and programming instructions. Additionally, the device's evaluation board and software development kit (SDK) can be used to simplify the programming process.
  • The typical start-up time for the LTC4162EUFD-L40#PBF is around 10ms, as specified in the datasheet. However, this time may vary depending on the specific application and configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4162EUFD-L40#PBF Overview

Use the download button to access the LTC4162EUFD-L40#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits
