LTC4162EUFD-L40M#PBF - Analog Devices

Description: Battery Management LIon Step-Down Batt Chargr w/ PowrPath

Download LTC4162EUFD-L40M#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

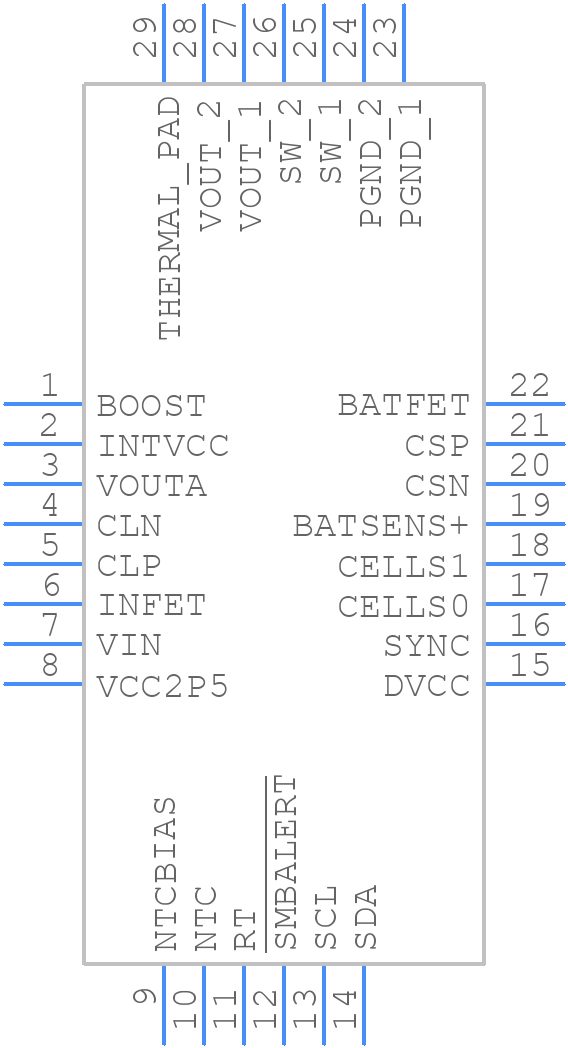

Symbol
LTC4162EUFD-L40M#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162EUFD-L40M#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm
click to zoom
3D Models
LTC4162EUFD-L40M#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm
click to zoom

LTC4162EUFD-L40M#PBF Details

  • Manufacturer Part Number:

    LTC4162EUFD-L40M#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162EUFD-L40M#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency switching regulators, such as keeping the power stage components close together, using a solid ground plane, and minimizing trace lengths and widths.
  • The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (typically between 1uH and 10uH). You can also use online inductor selection tools or consult with the inductor manufacturer.
  • The datasheet specifies an operating temperature range of -40°C to 125°C, but the maximum ambient temperature rating depends on the specific application and cooling conditions. As a general rule, it's recommended to derate the device's power dissipation at high ambient temperatures to ensure reliable operation.
  • Yes, the LTC4162EUFD-L40M#PBF is qualified for automotive and high-reliability applications, but you should consult the datasheet and relevant standards (e.g. AEC-Q100) to ensure that the device meets the specific requirements of your application. You may also need to perform additional testing and validation.
  • Analog Devices provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. You can also consult the application notes and online resources, or contact Analog Devices' technical support for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4162EUFD-L40M#PBF Overview

Use the download button to access the LTC4162EUFD-L40M#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC41, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
