LTC4162EUFD-LAD#PBF - Analog Devices

Description: Battery Management 35V/3.2A Multi-Cell Lithium-Ion Step-Down Battery Charger with PowerPath and I2C Telemetry

Download LTC4162EUFD-LAD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

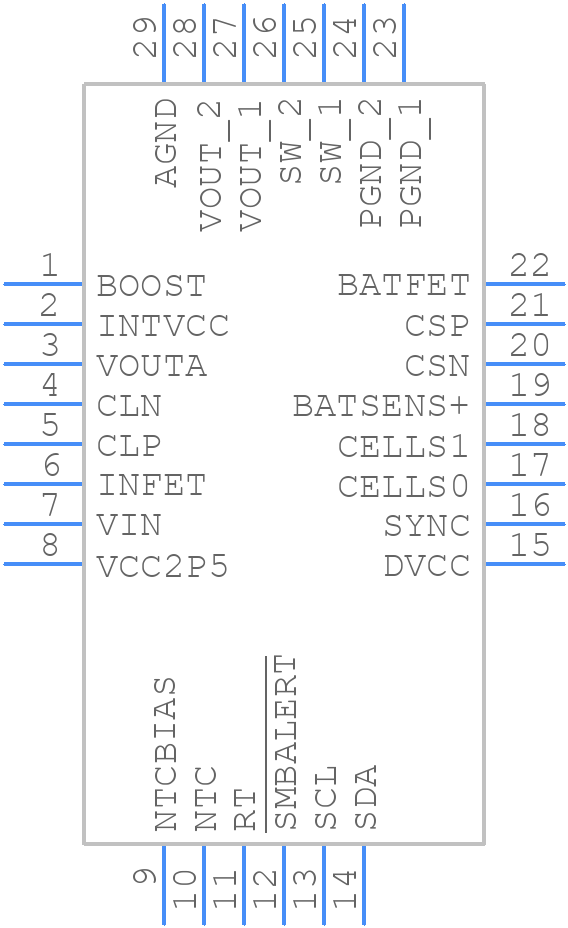

LTC4162EUFD-LAD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162EUFD-LAD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom
3D Models
LTC4162EUFD-LAD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD Package 28-Lead Plastic QFN (4mm x 5mm)
click to zoom

LTC4162EUFD-LAD#PBF Details

  • Manufacturer Part Number:

    LTC4162EUFD-LAD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC4162EUFD-LAD#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Refer to the application note AN140 for more details.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. The datasheet recommends an inductor with a value between 1.5μH and 3.3μH. Use the inductor selection guide in the datasheet or consult with a magnetics expert.
  • The maximum ambient temperature range for the LTC4162EUFD-LAD#PBF is -40°C to 125°C. However, the junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the LTC4162EUFD-LAD#PBF is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is manufactured with automotive-grade processes. However, ensure that your specific application meets the required standards and regulations.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or instability. Verify that the PCB layout and component selection meet the recommended guidelines. Consult the application note AN140 and the datasheet for troubleshooting tips and guidelines.
