LTC4162EUFD-SST#PBF - Analog Devices

Description: Battery Management 35V/3.2A Multi-Cell Lithium-Ion Step-Down Battery Charger with PowerPath and I2C Telemetry

Download LTC4162EUFD-SST#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

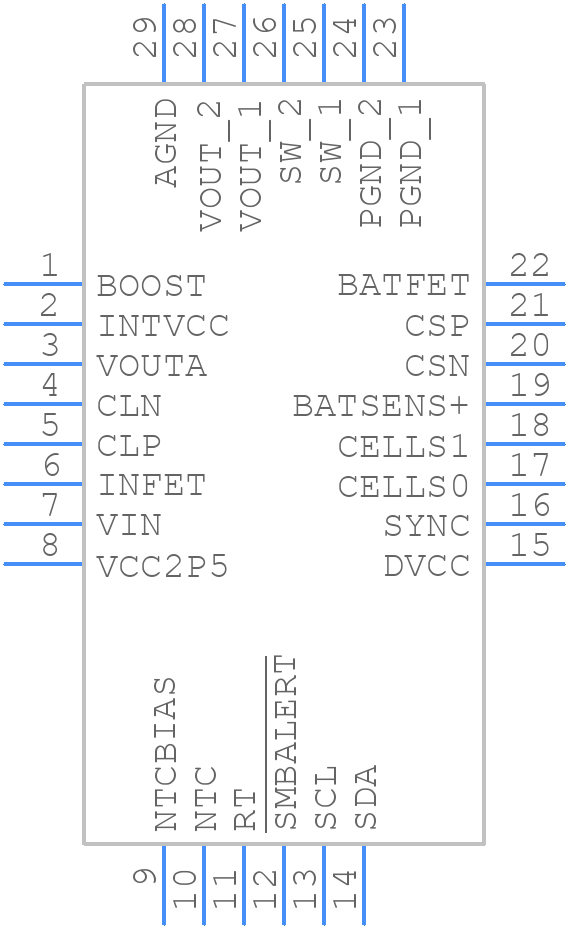

Symbol
LTC4162EUFD-SST#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162EUFD-SST#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN28-ren2
click to zoom
3D Models
LTC4162EUFD-SST#PBF - Analog Devices - 3D model - Quad Flat No-Lead - QFN28-ren2
click to zoom

LTC4162EUFD-SST#PBF Details

  • Manufacturer Part Number:

    LTC4162EUFD-SST#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162EUFD-SST#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for high-frequency switching regulators, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
  • The datasheet provides guidelines for inductor selection, but it's also important to consider factors such as inductor core material, size, and saturation current. A good starting point is to use an inductor with a value between 1.5uH to 3.3uH, and a saturation current rating above the maximum output current of the regulator.
  • The datasheet specifies an operating temperature range of -40°C to 125°C, but it's also important to consider the junction temperature of the IC, which should not exceed 150°C. The maximum ambient temperature range will depend on the specific application and thermal design.
  • The datasheet provides some guidance on EMI considerations, but it's also important to follow general best practices for EMI reduction, such as using a shielded inductor, keeping the switching node (SW) away from sensitive nodes, and using a common-mode choke or EMI filter if necessary.
  • The datasheet recommends using a low-ESR ceramic capacitor with a value between 10uF to 22uF, but the specific type and value will depend on the input voltage and frequency, as well as the output current and ripple requirements.
