LTC4162IUFD-FADM#PBF - Analog Devices

Description: 35V/3.2A Multi-Cell LiFePO4 Step-Down Battery Charger with PowerPath and I2C Telemetry

Download LTC4162IUFD-FADM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

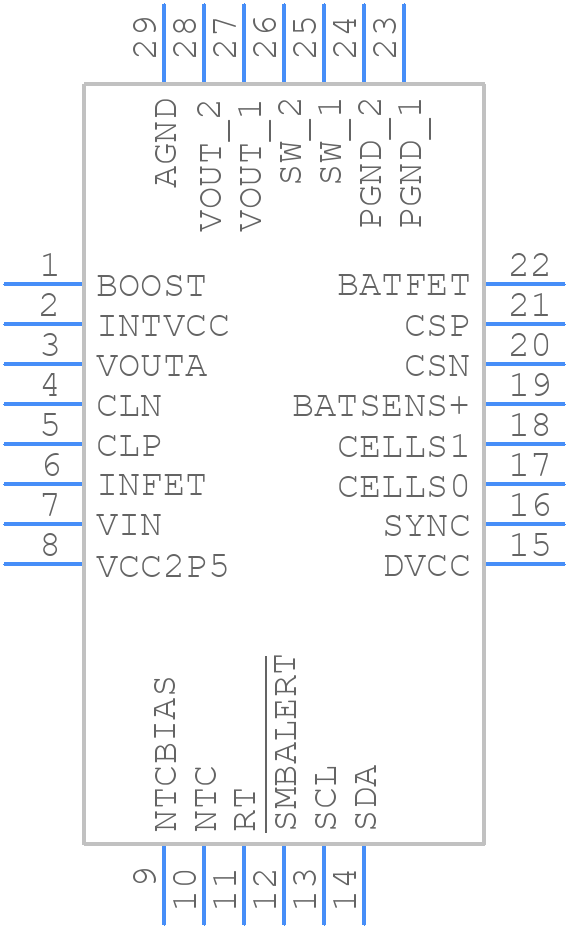

Symbol
LTC4162IUFD-FADM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4162IUFD-FADM#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD 28-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LTC4162IUFD-FADM#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD 28-Lead Plastic QFN (4mm × 5mm)
click to zoom

LTC4162IUFD-FADM#PBF Details

  • Manufacturer Part Number:

    LTC4162IUFD-FADM#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFD-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1866

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC4162IUFD-FADM#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC4162IUFD-FADM#PBF can be found in the application note AN140, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance and minimize noise and EMI.
  • The selection of input and output capacitors for the LTC4162IUFD-FADM#PBF depends on the specific application requirements. A good starting point is to use low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The datasheet provides more detailed guidance on capacitor selection and optimization.
  • The maximum ambient temperature range for the LTC4162IUFD-FADM#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation within the specified temperature range.
  • Yes, the LTC4162IUFD-FADM#PBF is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is manufactured with high-reliability processes. However, it's essential to consult with Analog Devices Inc. for specific requirements and qualifications.
  • Troubleshooting common issues with the LTC4162IUFD-FADM#PBF requires a systematic approach. Start by verifying the PCB layout, component values, and input/output connections. Check for proper decoupling, filtering, and noise reduction. Consult the datasheet, application notes, and Analog Devices Inc.'s technical support resources for guidance on troubleshooting and debugging.
